Bulb Tail Lamp/Stop Lamp/Back-Up Lamp/Fog Lamp, Replacing: Removal: Bulbs

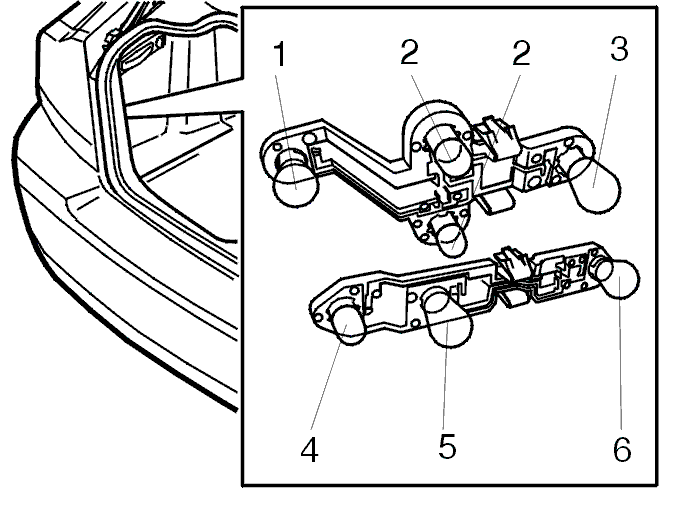

Fig 1: View Of Bulb Hatch

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the lamp holder catches towards each other. Withdraw the bulb holder
Remove the bulb.

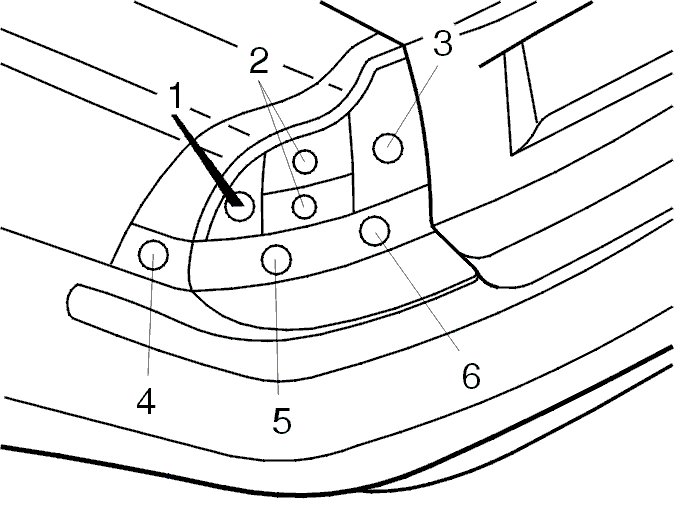

Fig 2: Identifying Bulb Tail Lamp, Stop Lamp, Back-Up Lamp, Fog Lamp, Side Marker Lamp, Turn Signal Lamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

For the location of lamps in the tail lamp as shown.

Stop (brake) lamps
Parking lamps and position lamps
Fog lamps
Side marker lamps
Turn signal lamps
Back-up (reversing) lamps.

NOTE: There is only a fog tail lamp bulb in one of the tail lamps. In the left tail lamp on left-hand drive cars and in the right on right-hand drive cars.
