Windshield antenna and amplifier

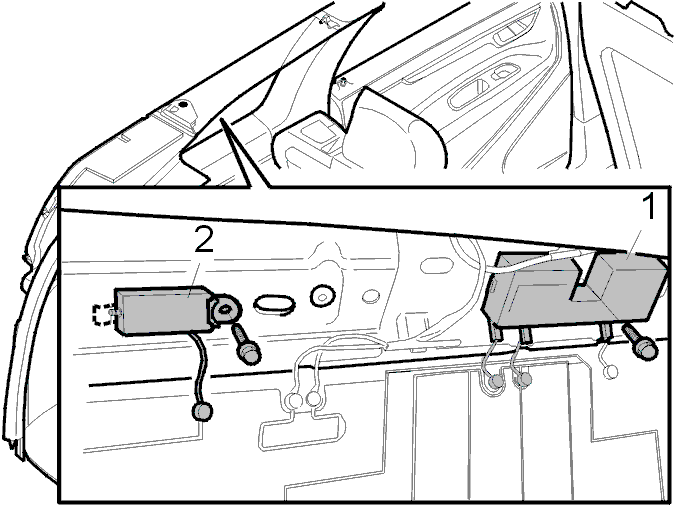

Fig 1: Identifying Windshield Antenna And Amplifier

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the cantrail panel. See Panel, cantrail, replacing
• the connector and the screw
• the amplifiers.

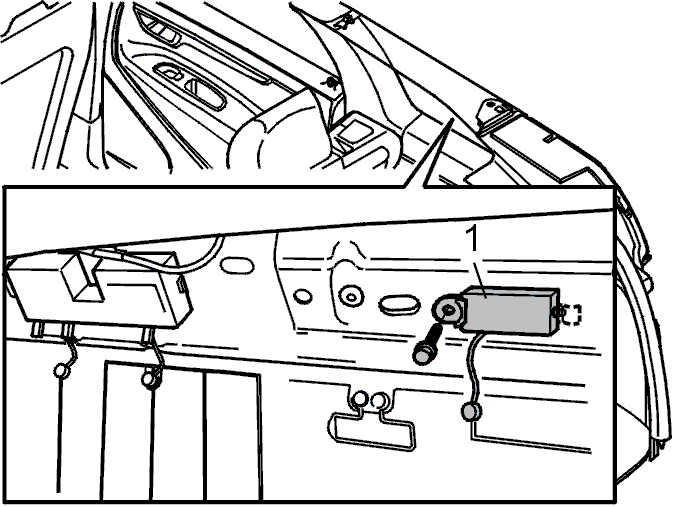

Fig 2: Identifying Windshield Antenna

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

In reverse order.
