Telephone, fixed: Preparations

Fig 1: Disconnecting Battery Negative Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Move the front seats to their rearmost, uppermost positions
Turn the ignition switch to position 0.
Remove the key from the ignition switch (does not apply to cars with automatic gearbox).
Disconnect the battery negative lead.

NOTE:

Wait at least five minutes before disconnecting the connectors or removing other electrical equipment.

Fig 2: Removing Gear Selector Lever Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the rear edge of the gear selector lever cover together with the boot until the two clips release. Use a plastic weatherstrip tool. Remove the gear selector lever cover and the boot. Pull the panel up until the four clips at the sides release.

Fig 3: Moving Gear Selector Lever Towards Rear And Rotating Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

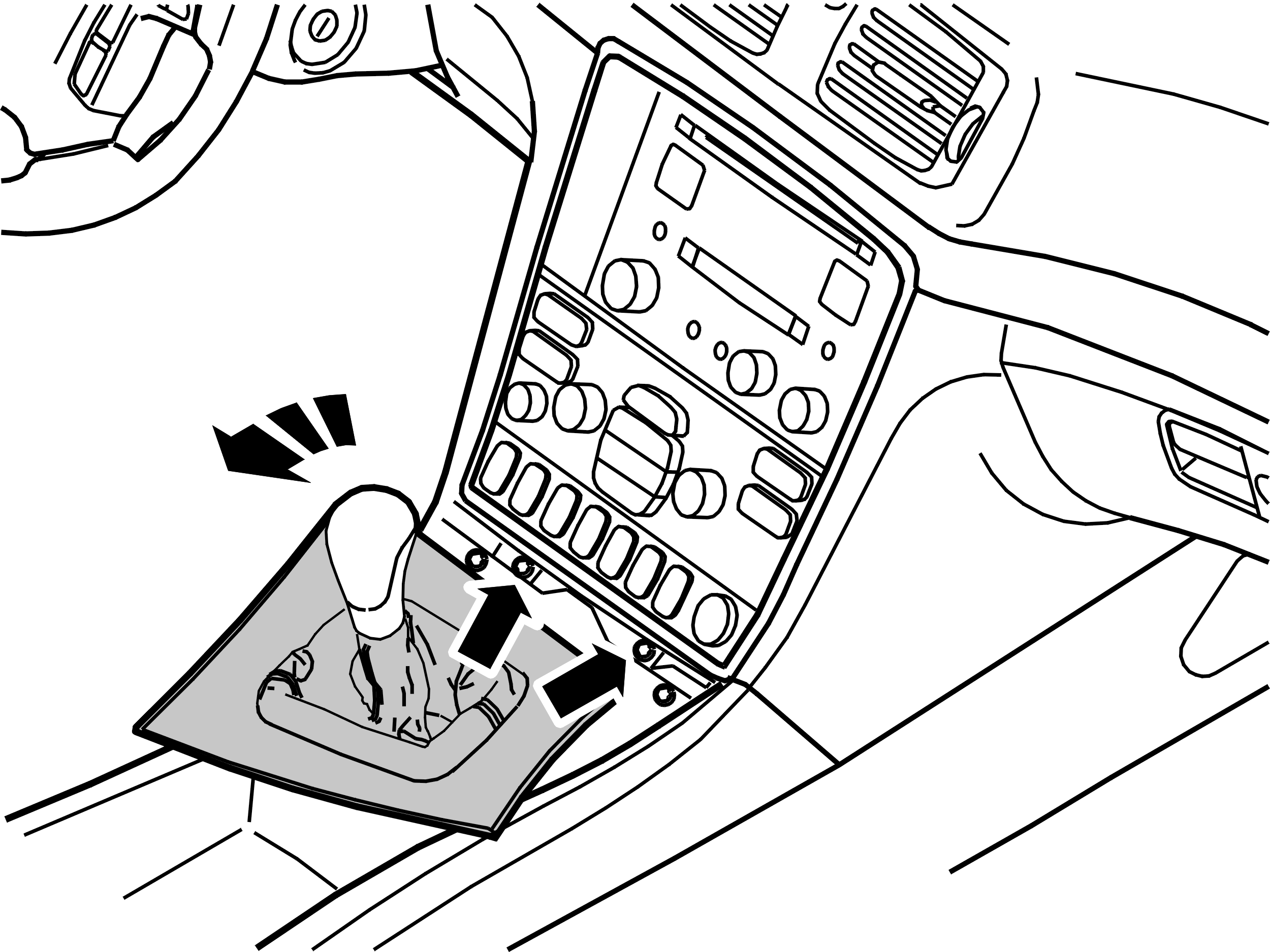

Engage the handbrake and move the gear selector lever towards the rear.
Rotate the panel to the left for better access.
Remove the two screws holding the bracket with the radio and dashboard environment panel in the center console.

Fig 4: Removing Dashboard Environment Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the bracket with dashboard environment panel and the radio from the center console: Pull the lower edge out and downwards until it releases from the mounting at the upper edge. Then fold backwards.
NOTE:
Do not damage the removed components or the surrounding panels.

If necessary, the panel around the gear lever selector can be removed for additional space. The panel is secured with four catches on the underside along the boot.
Disconnect the connectors from the radio and dashboard environment panel. Place the unit to one side.

Fig 5: Removing Panel Around Gear Selector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel from the gear change lever boot. First press in the four catches around the panel. Then pull the panel up.

Fig 6: Identifying Center Console Front Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 7: Removing Right And Left-Hand Side Center Console Panels, Screws On Panel, And Sill Molding

Courtesy of VOLVO CARS OF NORTH AMERICA.

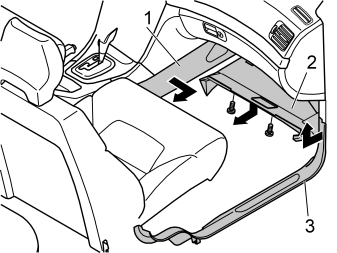

Remove the right and left-hand side center console panels (1). Turn the clip at the rear edge of the panel through 90°. Pull the rear edge of the panel outwards and backwards
Remove the two screws on the panel (2) under the glove compartment. Remove the panel. Then pull the panel downwards / backwards at the rear edge, it is secured by three clips
Remove the sill molding (3) on the right-hand side. Pull the front edge of the sill molding back to release it. Then pull the molding upwards.

Fig 8: End Covers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 9: Removing Rubber Mat At Bottom Of Rear Storage Compartment And Removing Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the rubber mat in the bottom of the storage compartment in the center console and remove the two screws underneath. The rubber mat shall not be re-used.

Fig 10: Prying Up Panel Of Hand Brake Lever Boot And Removing It

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the boot for the handbrake lever by carefully prizing it away all around using a plastic weatherstrip tool. Following which, thread the boot over the handbrake lever.

Fig 11: Removing Panel In Rear Edge Of Tunnel Console

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel in the rear edge of the center console. Carefully prize off the panel using a plastic weatherstrip tool.

Fig 12: Removing Holder In Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the holder in the panel (ashtray, if applicable) from the panel. First bend the catches on both sides at the upper edge downwards. Use a small screwdriver. Pull out the holder by the upper edge.

Fig 13: Disconnecting Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

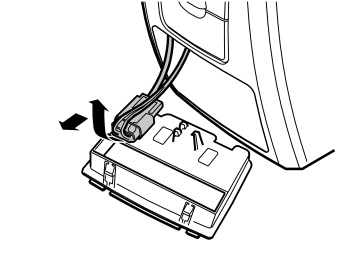

Disconnect the connectors from the reverse of the holder (ashtray, if applicable). Place to one side.

Fig 14: Unplugging Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unplug the connectors to the 12V socket.
Lift out the center console. Do not damage the handbrake lever trim, wind tape around it to avoid chafing.

Fig 15: Lifting Out Center Console

Courtesy of VOLVO CARS OF NORTH AMERICA.
