Installing the keypad in the center console

Fig 1: Identifying Dashboard Environment Panel Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the three screws at the upper edge of the surround for the unit and radio and dashboard environment panel.

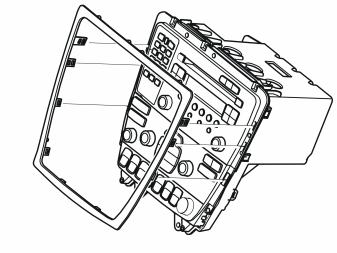

Fig 2: Identifying Surround

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the surround from the unit. Pry off the catches along the vertical and lower sides of the surround. Pull off the surround. The catches are thin and are easily broken. Take care.

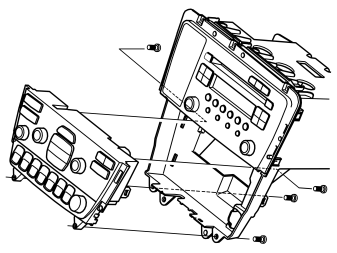

Fig 3: Identifying Radio, Screws And Dashboard Environment Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the four screws on the reverse of the dashboard environment panel. Remove the dashboard environment panel from the radio and bracket.

Fig 4: Removing / Installing Radio From Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the radio from the unit. Carefully pry off the catches along the vertical sides and then pull straight out. The catches are thin and are easily broken. Take care.

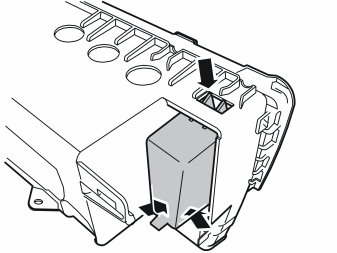

Fig 5: Identifying Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the compartment in the bracket. Press in the catches at the top and bottom side. Press the compartment out. This will not be used again.

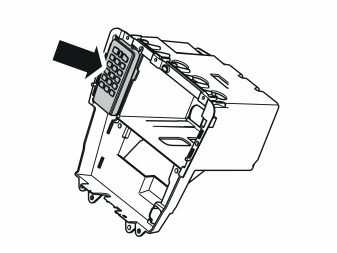

Fig 6: Identifying Phone Keypad

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the phone keypad into place where the compartment was located. Ensure that all the catches have engaged.

Fig 7: Identifying Surround

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 8: Identifying Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect:

the green connector (1) from the new cable harness for the radio
the previously disconnected green (GN) connector (2) from the radio to the green (GN) connector (3) in the new cable harness
the connectors (4, 5) in the new cable harness to the keypad (6)
the existing connectors (previously disconnected) to the radio
Reinstall the unit in the center console. Tighten the center console. Use the two screws
Reinstall the panel around the gear selector lever
