Cargo compartment preparations
- Remove the cargo compartment carpet at the rear edge. First turn the two handles (1) 90°.
- Pull up the front of the cargo compartment carpet. Fold the front half back over the rear half of the cargo compartment carpet.
- Slide the entire cargo compartment carpet forward slightly. Twist slightly to remove the carpet through the tailgate opening
- Remove the cargo compartment carpet.
- Press the center of the clips at the lower edge of the foldable side panel on the left-hand side until they click
- Remove the two clips
- Remove the plastic nut at the front lower edge of the side panel.
Remove:
- the clips (1) in the left front side panel in the cargo compartment
- the panel. Place the panel to one side.
- Remove the cable (1) between the GPS aerial on the parcel shelf and the DVD reader (the black single cable in the rear edge of the DVD reader)
- Place the cable to one side. The amplifier will not be reused. There is a new cable harness in the kit.

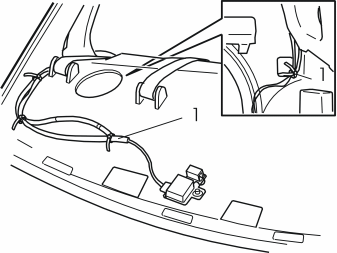

- Route the new cable harness (1) in the same way as the old harness

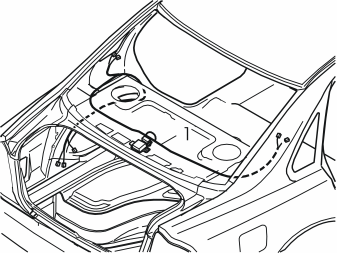

- Position the connectors for the cable harness at the C-posts and at the rear edge of the wheel house. See the illustration
- Press the cable harness into place in the parcel shelf with the existing clips
- Connect the connector to the GPS aerial.
Applies to Japan

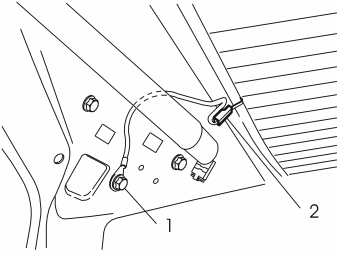

- Remove the ground lead for the rear windscreen. First remove the screw (1). Remove the connector (2) from the rear windscreen at the right-hand C-post
- Place the ground lead and the screw to one side. They will not be reused.
Applies to Europe
- Remove the screw (1). Remove the ground lead from the C-post. A new screw is included in the kit.
- Remove the cables (1, 2) for the existing aerial amplifier on the left C-post
- Remove the screw (3). Remove the aerial amplifier
- Place the aerial amplifier to one side. The amplifier will not be reused.
- Connect the new TV aerial amplifier (blue) to the new AM/FM aerial amplifier (blue) from the kit.
Applies to Japan
- Carry out the same operation with the new green aerial amplifiers.
Applies to Europe
- For the EU only use the small green TV aerial amplifier.
Applies to Japan

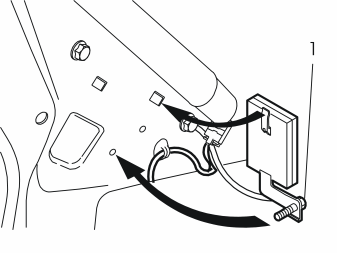

- Install the new AM/MPX and TV aerial amplifiers (green) on the right C-post. Ensure that the aerial amplifier guide lugs engage in the two rectangular holes and in the small round holes
- Tighten the amplifiers
- Repeat the operation for the left-hand AM/FM and TV aerial amplifier (blue).
Applies to Europe
- Install the small green TV aerial amplifier for the right hand C post in the rear position with the ground lead cable terminal on top. Tighten the aerial amplifier
- Ensure that the guide lugs for the amplifier are in their holes
- Repeat the operation for the left-hand AM/FM and TV aerial amplifier (blue).

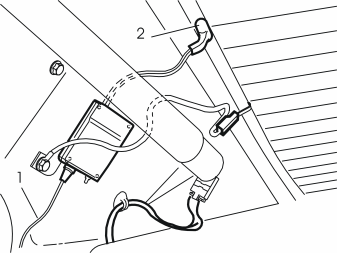

- Reinstall the cables (1) (that were removed earlier) in the front aerial amplifier on the left C-post
- Connect the two single cables (2) (previously routed) to the rear aerial amplifier on the left C-post

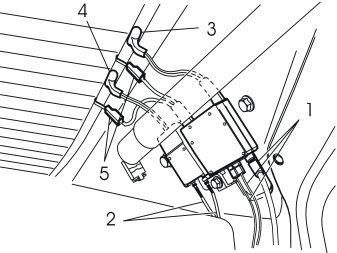

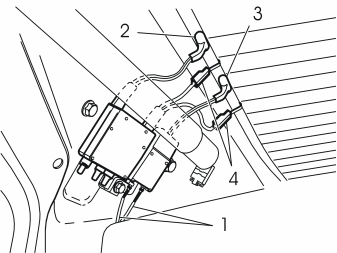

- Connect the cables (3, 4, 5) to the connectors on the rear windscreen as shown in the illustration.
Applies to Japan
- Connect the two single cables (1) (previously routed) to the rearmost of the two amplifiers on the right C-post
- Connect the cables (2, 3, 4) to the connectors on the rear windscreen as shown in the illustration.
Applies to Europe
- Connect the single cable (1) (previously routed) to the front terminal in the TV aerial amplifier on the right C-post as shown in the illustration
- Connect the cables (2) to the connectors on the rear windscreen as shown in the illustration.

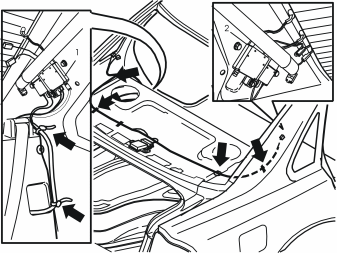

- Clamp the cables on the parcel shelf, at the C-post and at the lead-in to the cargo compartment. See the arrows in the illustration.
- Remove the three screws (1) holding the DVD reader and the bracket at the body
- Carefully pull the unit outwards slightly. Position the unit in front of the battery.
- Tighten the TV tuner on the bracket using the three screws from the kit.
- Connect the DIN cable (1) and the cable with the green connectors (2) from the kit between the DVD reader and the TV tuner
- Connect the two connectors (3) from the aerial amplifiers at the C-posts to the TV tuner
- Connect the new cable (4) from the GPS aerial.
- Reinstall the DVD reader with the TV tuner. Tighten using the three screws. Tighten to 10 Nm (7.5 lbf.ft.)

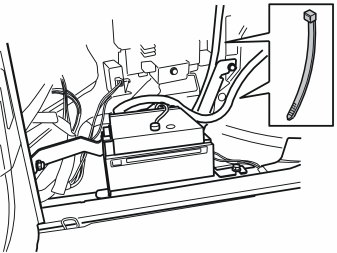

- Secure the wiring at the DVD reader / TV tuner using a tie strap from the kit.
Reinstall:
- the parcel shelf panel
- the C-post panels
- the side cushions
- the backrests
- the seat cushion
- the panels in the cargo compartment.
- Turn the ignition key to position II
- Reconnect the battery negative lead
- Reinstall the cargo compartment carpet
- Program the software according to the service information in VIDA.
