Cargo compartment preparations

Fig 1: Cargo Compartment Carpet At Rear Edge And Two Handles

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cargo compartment carpet at the rear edge. First turn the two handles (1) 90°.

Fig 2: Fold Front Half Back Over Rear Half Of Cargo Compartment Carpet

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull up the front of the cargo compartment carpet. Fold the front half back over the rear half of the cargo compartment carpet.

Fig 3: Carpet At Tailgate Opening

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slide the entire cargo compartment carpet forward slightly. Twist slightly to remove the cargo compartment carpet through the tailgate opening
Remove the cargo compartment carpet.

Fig 4: Clips In Lower Edge Of Folding Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the centers of the clips at the lower edge of the foldable side panel on the left-hand side until a click is heard
Remove the two clips
Remove the plastic nut at the front lower edge of the side panel.

Fig 5: Identifying Clips From Left Front Side Panel In Cargo Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the clips (1) in the left front side panel in the cargo compartment
the panel. Place the panel to one side.

Fig 6: Identifying GPS Antenna Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cable (1) between the GPS antenna on the parcel shelf and the foremost of the three upper sockets in the upper sockets in the RTI control module
Place the cable to one side. The amplifier will not be reused. A new cable harness is in the kit.

Fig 7: Identifying Cable Harness

Courtesy of VOLVO CARS OF NORTH AMERICA.

Route the new cable harness (1) in the same way as the old harness
Position the connectors for the cable harness at the C-posts and at the rear edge of the wheel house. See the illustration
Press the cable harness into place in the parcel shelf with the existing clips
Connect the connector to the GPS antenna.

Fig 8: Identifying Screw And Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to Japan

Remove the ground lead for the rear windshield. First remove the screw (1). Remove the connector (2) from the rear windshield at the right-hand C-post
Place the ground lead and the screw to one side. They will not be reused.

Applies to Europe

Remove the screw (1). Remove the ground lead from the C-post. A new screw is included in the kit.

Fig 9: Identifying Antenna Amplifier Cables And Antenna Amplifier Mounting Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cables (1, 2) for the existing antenna amplifier on the left C-post
Remove the screw (3) and remove the antenna amplifier
Place the antenna amplifier to one side. The amplifier will not be reused.

Fig 10: Identifying TV Antenna Amplifier And AM/FM Antenna Amplifier

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the new TV antenna amplifier (blue) to the new AM/FM antenna amplifier (blue) from the kit.

Applies to Japan

Carry out the same operation with the green antenna amplifiers.

Applies to Europe

For the EU only use the small green TV antenna amplifier.

Applies to Japan

Fig 11: Installing New AM/MPX And TV Antenna Amplifiers On Right C-Post

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the new AM/MPX and TV antenna amplifiers (green) on the right C-post. Ensure that the antenna amplifier guide lugs engage in the two rectangular holes and in the small round holes
Tighten the amplifiers
Repeat the operation for the left-hand AM/FM and TV antenna amplifier (blue).

Applies to Europe

Fig 12: Installing Antenna Amplifiers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the small green TV antenna amplifier for the right hand C post in the rear position with the ground lead cable terminal on top. Tighten the antenna amplifier
Ensure that the amplifier guide lugs are in their relevant holes
Repeat the operation for the left-hand AM/FM and TV antenna amplifier (blue).

Fig 13: Identifying Cables

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the cables (1) (that were removed earlier) in the front antenna amplifier on the left C-post
Connect the two single cables (2) (that were routed earlier) to the rear antenna amplifier on the left C-post
Connect the cables (3, 4, 5) to the connectors on the rear windshield as shown in the illustration.

Applies to Japan

Fig 14: Identifying Cables

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the two single cables (1) (that were routed earlier) to the rearmost of the two amplifiers on the right C-post
Connect the cables (2, 3, 4) to the connectors on the rear windshield as shown in the illustration.

Applies to Europe

Fig 15: Identifying Cables

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the single cable (1) (previously routed) to the front terminal in the TV antenna amplifier on the right C-post as shown in the illustration
Connect the cables (2) to the connectors on the rear windshield as shown in the illustration.

Fig 16: Identifying Cables Secured To Parcel Shelf, C-Post, And Cargo Compartment Lead-In

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clamp the cables on the parcel shelf, at the C-post and at the lead-in to the cargo compartment. See the arrows in the illustration.

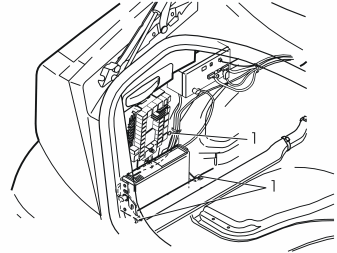

Fig 17: Identifying CD ROM Changer, Bracket, And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the three screws (1) holding the CD ROM changer and bracket at the body
Lift up the unit and place it on the left rear side member.

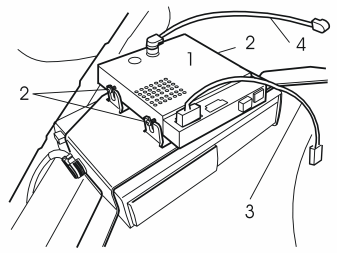

Fig 18: Identifying TV Tuner, Cable Harness, DIN Cable, And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take the TV tuner (1) and the three screws (2) from the kit. Tighten the TV tuner on the reverse of the bracket for the CD ROM changer
Connect the cable harness (3) with the green connector and the new DIN cable (4) to the TV tuner
Reinstall the CD ROM changer and the TV tuner.

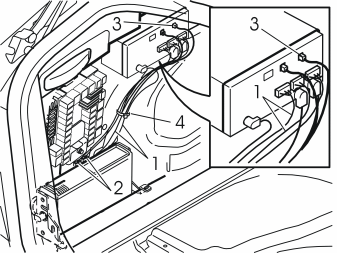

Fig 19: Identifying Cables And Tie Strap

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the two cables (1) from the TV tuner to the RTI control module
Connect the two cables (2) routed from the parcel shelf to the TV tuner
Connect the cable (3) from the parcel shelf to the RTI control module
Clamp the cables with a tie strap (4) from the kit.

Reinstall:

the parcel shelf panel
the C-post panels
the side cushions
the backrests
the seat cushion
the panels in the cargo compartment.

Fig 20: Connecting Negative Battery Lead

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the ignition key to position II
Reconnect the battery negative lead
Re-position the cargo compartment carpet
Program the software according to the service information in VIDA.
