Installing and connecting the display screen

Fig 1: Bracket On Display, Screws And Washer

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars without a centrally mounted loudspeaker

Install the bracket (1) on the display (2). Only use screws at position (3) and screw and washer at position (4). Screws and washer can be found in the kit.

Applies to cars with a centrally mounted loudspeaker

Fig 2: Connecting Wiring For DVD Reader To Display

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars without a centrally mounted loudspeaker

Connect the wiring for the DVD reader (1) to the display (2)
Install the display screen and the bracket in the dashboard. Use the existing screws (3)
Press the new loudspeaker grille (from the kit) into place on the dashboard.

Fig 3: Identifying Loudspeaker, Screws And Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars with a centrally mounted loudspeaker

Install the centrally mounted loudspeaker in the cut out in the bracket for the display screen
Tighten the loudspeaker into place. Use the four screws
Press the connector (1) for the center loudspeaker into the bracket on the left-hand under side of the display screen bracket.

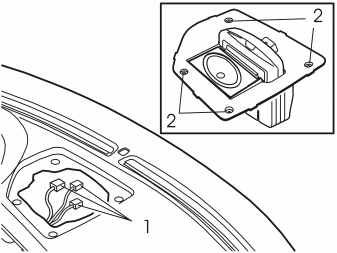

Fig 4: Connecting Cables To Display Screen And Tightening Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars with a centrally mounted loudspeaker

Connect the three cables (1) to the display screen and the centrally mounted loudspeaker
Press the display screen and bracket into the dashboard. Tighten using the three existing screws (2)
Press the new loudspeaker grille (from the kit) into place on the dashboard.
