Connection in the fuse holder
- Remove the rear electronic module. First open the catch (1) on the top of the module. Fold the module forward. Lift the module from the mountings (2).

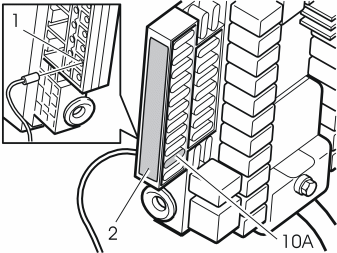

Fig 2: Connect Routed Red/White Cable To Outer Terminal On Reverse Of Fuse Socket 10 And Remove Decal
- Connect the new routed red and white cable to the outer terminal (1) on the reverse of fuse socket number 10 on the fuse holder. Remove the decal (2). Carefully pry up the red secondary locking on the face in the end nearest terminal 10. At the same time press the cable into position.
HINT: If there is a problem inserting the cable, the fuses on the outer side must be removed in order to open the red secondary locking further.
- Reinstall the decal
- Install a 10 A fuse in fuse socket 10 on the fuse holder.
- Slacken off the screw (1)
- Pull out the cover (2) and the four connectors
- Remove the cover from the four connectors by bending the three hooks to one side.
Fig 4: Opening Holders, Pressing Connector To Side, And Connecting White Cable To Terminal 15 And Green Cable To Terminal 17
- Insert a small screwdriver in the socket on connector A as shown in the illustration
- Twist the screwdriver so that the holders open. At the same time press the connector out to the side
- Connect the white (W) cable to terminal 15 and the green (GN) cable to terminal 17.
Reinstall:
- the connector
- the cover on the connector
- the connectors on the rear electronic module. Tighten the screw
- the rear electronic module.
