Cable routing
Fig 1: Identifying Air Duct, Member, Cable Harness, Stay, Tie Strap, And Power Supply Connector For Display Screen
- Route the wiring (A in the kit illustration) for the display screen and the radio, and the loose cable for the display screen with the ten pin connectors (B in the kit illustration) to the radio socket between the air duct (1) and the stay (2). Ensure that the straight connector on the loose cable (B) is routed to the cut out for the radio
- Route the green 5-pin power supply connector (3) for the display screen and the cable (B) to the left of the air ducts above the hole for the radio. Continue up through the cut out for the dashboard loudspeaker
- Secure the wiring in the stay (2). Use a tie strap (4)
- Route the wiring above and along the air duct (1) to the member (5)
- Clamp the wiring at the existing cable harness (6). Use a tie strap.

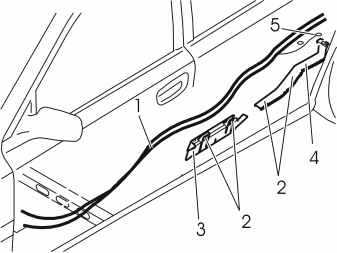

- Route the wiring (1) under the carpet along the left side of the car to the rear door
- Install the protective caps on the lugs (2) for the cable ducts
- Route the wiring further above and along the front cable duct (3). Continue along the right hand side of the rear cable duct (4)
- Connect the ground lead to the rear ground terminal (4) on the left side of the rear seat. Tighten the screw. Tighten to 10 Nm (7.4 lbf.ft) .
Route the wiring (1):
- out along the right-hand side of the cable duct (2) and under the wiring which is connected there. Remove the connectors if necessary
- up along the top of the wheel arch and out through the hole at the top of the wheel arch
- down along the wheel arch. Position the wiring as shown in the illustration.
