Parcel shelf loudspeakers: Preparations
- Open the trunk lid.

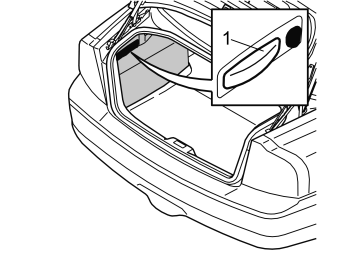

- Pull the catches (1) on both sides of the backrests. Fold the backrests forwards.
- Fold both the rear backrests forward.
- Remove the seat belts from the guides (1).
- Remove the clip (1) at the side of the left-hand side cushion.
- Pull out the top edge of the left front panel in the cargo compartment to access the upper catch for the side cushion.
- Repeat the operation on the right-hand side.
- Remove the left-hand side cushion. First press in the catches (1) at the top edge of the reverse of the side cushion. Pull the cushion out slightly.
- Grasp the cushion using both hands. Twist counter-clockwise until the catches on the inside release.
- Remove the side cushion. First pull out the upper edge of the side cushion. Then pull upwards.
- Repeat the operation on the other side.
- Remove the cover and the screw for the left-hand C-post panel.
- Repeat the operation on the other side.
- Remove the rubber strip at the rear edge on the left-hand rear door frame
- Grasp the top edge of the C post panel. Pull (A) the panel inwards until the three clips (1) release.
- Then pull (B) the panel straight up. Place the panel to one side.
- Repeat the operation on the other side.
- Carefully lift the front edge of the parcel shelf panel until the clips (1) release.
- Lift up the panel further until the locating pins (2) release from their holes.
- Pull out the parcel shelf. Lay the parcel shelf on the folded backrests.
Applies to cars with loudspeaker grilles in the parcel shelf panel
- Turn the parcel shelf panel upside down.

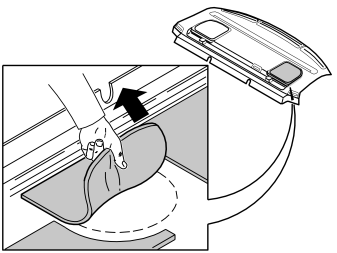

- Remove the insulation under the loudspeaker grilles.
Applies to cars with loudspeaker grilles in the parcel shelf panel

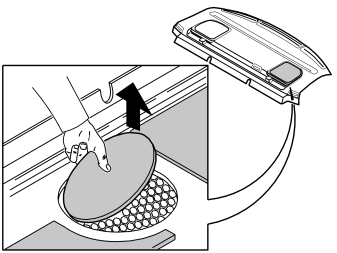

- Remove the stamped panel under the loudspeaker grilles.
