Preparations, tunnel console

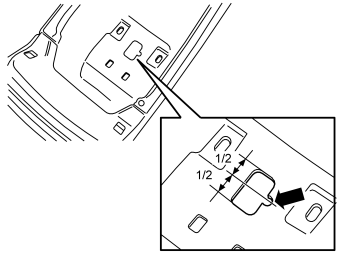

Fig 1: Filing Out Groove For Grommet Of iPod Adapter Using Round File

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars up to and including model year 2004

• File out a groove for the grommet of the iPod adapter cable using a round file.

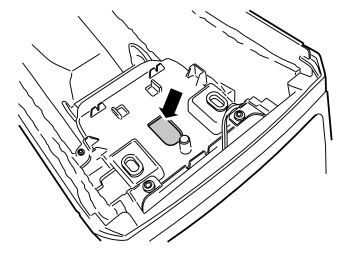

Fig 2: Cutting Along Marking In Bottom Of Storage Compartment For Cable From IPod Adapter

Courtesy of VOLVO CARS OF NORTH AMERICA.

For cars from model year 2005-

• Cut along the existing marking in the bottom of the storage compartment for the cable from the iPod adapter. Even out the hole edges and remove any filings.

Fig 3: Filing Out Groove On Left Side Of Recess In Bottom Of Storage Compartment For IPod Adapter Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

For cars from model year 2005- with integrated telephone

• File out a groove on the left side of the recess in the bottom of the storage compartment for the iPod adapter cable. File so that there is enough room for the cable to run freely when the rubber grommet is in place. Make sure that the cable does not chafe against the edges.
