Installing the iPod adapter

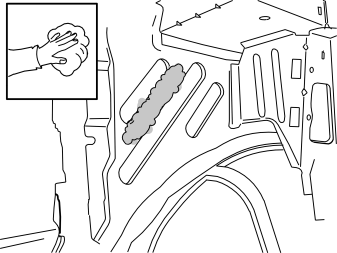

Fig 1: Cleaning Marked Surface Of Plate Over Left Rear Wheel Housing And Wiping Dry

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the marked surface of the plate over the left rear wheel housing using isopropanol, P/N 1161721-4, and wipe dry.

Fig 2: Cleaning Marked Surface On iPod Adapter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the marked surface on the iPod adapter using isopropanol, P/N 1161721-4, and wipe dry.

Fig 3: Identifying Protective Backing Tape Removed From Velcro Strips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the protective backing tape from one of the velcro fastenings from the kit.

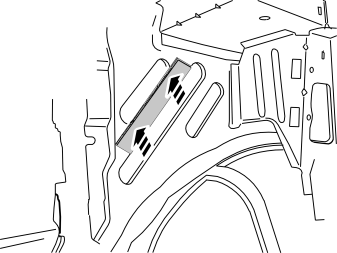

Fig 4: Pressing Velcro Fastening Into Place On Cleaned Surface Above Left Wheel Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the velcro fastening into place on the cleaned surface above the left wheel housing as shown in the illustration.

Fig 5: Identifying Protective Backing Tape Removed From Velcro Strips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the protective backing tape from the other velcro fastening from the kit.

Fig 6: Attaching Velcro Fastener In Center Of iPod Adapter

Courtesy of VOLVO CARS OF NORTH AMERICA.

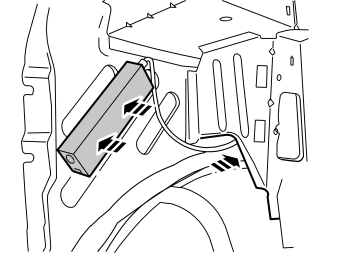

Fig 7: Pressing iPod Adapter Onto Velcro Fastener In Body

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the iPod adapter onto the velcro fastener in the body in the position shown in the illustration.
Insert the cable at the foam rubber insulation in the top edge of the wheel housing and route it to the front edge of the wheel housing. Route the cable inside of the lower part of the insulating panel and the rear part of the cable duct (Illustration B).

NOTE:

Make sure that the adapter does not come into contact with the chassis ground.

Fig 8: Cable Routing

Courtesy of VOLVO CARS OF NORTH AMERICA.
