Installing the telephone holder

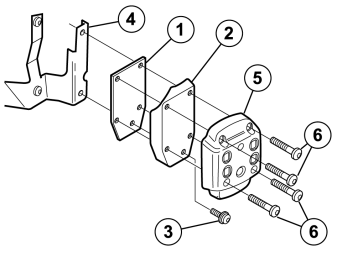

Fig 1: Installing Bracing Plate And Cover On Bracket Using Screw And Securing Handset Holder Mounting Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the bracing plate (1) and the cover (2) on the bracket (4). Use the screw (3) from the kit. Do not tighten fully yet.
Secure the handset holder mounting plate (5) using the screws (6) from the kit.
Tighten the screw (3).
Feed in any cable excess.

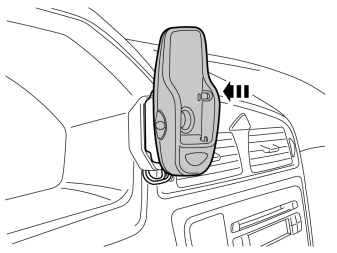

Fig 2: Installing Telephone Holder On Mounting Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.
