Installing the antenna

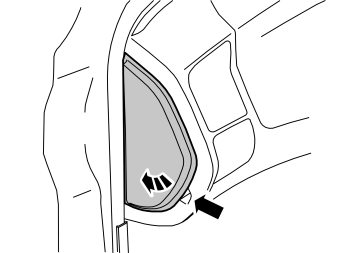

Fig 1: Prying Off Rear Edge Of Panel On Left-Hand End Of Dashboard And Twisting Out Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

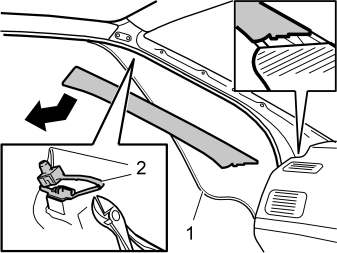

Fig 2: Detaching Door Sealing Molding And Unhooking Safety Hook

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Ensure that the guide lugs on the panel do not scratch the dashboard.

Fig 3: Cleaning Inside Of Windshield

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Removing Protective Film From Antenna

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the protective film from the antenna and position as shown in the illustration.

Fig 5: Pulling Antenna Cable Down Along A-Pillar Towards Dashboard And Out By End

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the antenna cable down along the A pillar towards the dashboard and out by the end.
Secure the cable using three tie straps.

WARNING:

The inflatable curtain (IC) is located inside the A-pillar panel, it is important that the cable is not positioned on it.
