Handsfree, entry level: Connecting

• Turn the clip (1) a quarter turn anti-clockwise.
• Pull the panel out by the rear edge.
• Then pull the panel backwards until the hooks release.
• Remove the panel.

• Remove the screws and sound proofing bracket.

• Detach the sill trim panel at the front edge.

• Open the glovebox.
• Lift the two hooks on each side past the lugs.

• Unhook the damping.

Remove:

• the eight screws
• the connector for the glove box lighting
• the connector for the glove box lighting
• the glove box.

• Connect the antenna cable (1) to the short cable (2) from the telephone holder mounting plate. Pull the microphone cable (3) further towards the glove box.

• Cut the protective casing approximately 120 mm on the car's cable harness (the one that the antenna cable for the radio is positioned in).

• Connect the adapter cable's green and gray connector (1) to the vehicle's cable harness (2).
• The connectors (3) are later connected to the radio.
• Position the connected gray connector up to the left and the green connector at the bottom in the middle so that they are not obstructive when installing the radio.

Applies to cars with external amplifier

• Take out the gray connector located up to the left in the center console.
• Remove the foam tape.
• Disconnect the connectors and connect the two gray adapter cable connectors.
• Reinstall the foam tape.

• Take the mute relay from the kit and connect the connectors.

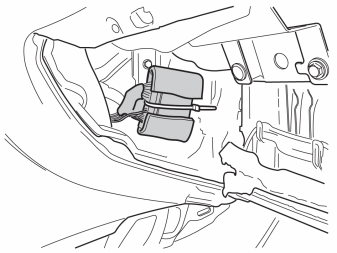

• Tape a thick piece of foam tape around the relay and the connectors.

• Take a large tie strap from the kit and secure the relay to the bracket for the A/C unit.
