Handsfree, Bluetooth

NOTE:

These installation instructions apply to left-hand drive vehicles. When installing in a right-hand drive vehicle, the procedure is carried out on the opposite side and/or mirrored. Where the operation differs, right-hand versions are also displayed with text and images.

There may be components in the accessories kit that are not used for this installation.

NOTE:

When installing Velcro fasteners/tape the underlying surface must be kept at a temperature of at least +20° C (68°F).

Place the manual for this accessory in a suitable place in the vehicle.

Fig 1: Ignition At Off Position And Negative Lead Disconnected

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the ignition switch to position 0 .
Disconnect the battery negative lead.
NOTE:
Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

Fig 2: Detaching Gear Lever Cover Panel With Boot

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use a plastic weatherstrip tool and detach the gear selector cover panel with boot by carefully prying it off at the rear edge until the clips release. Pull the panel upwards until the four clips at the sides have released.

Fig 3: Removing Panel Around Gear Selector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel around the gear selector. It is held in place with four catches.

Fig 4: Moving Gear Selector Towards Rear And Removing Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the ignition key to position II.
Engage the handbrake and move the gear selector lever towards the rear.
Remove the two screws holding the bracket with the radio and dashboard environment panel in the center console.

Fig 5: Removing Bracket With Dashboard Environment Panel And Radio From Center Console

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the bracket with dashboard environment panel and the radio from the center console: Pull the lower edge out and downwards until it releases from the mounting at the upper edge. Then fold backwards.
NOTE:
Do not damage the removed components or the surrounding panels.
Remove the connectors.
If the 12 pin gray terminal on the radio is not connected, the vehicle is equipped with an external amplifier. This information is used later.

Fig 6: Dashboard End Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel on the end of the dashboard.

Fig 7: Turning Clip A Quarter Turn Anti-Clockwise And Pulling Panel Out And Backwards Until Hooks Release

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the clip (1) a quarter turn anti-clockwise.
Pull the panel out by the rear edge.
Then pull the panel backwards until the hooks release.
Remove the panel.

Fig 8: Identifying Screws And Soundproofing Panel Removed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screws and sound proofing bracket.

Fig 9: Opening Glovebox And Lifting Hooks Past Lugs

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S60 and V70

Open the glovebox.
Lift the two hooks on each side past the lugs.

Fig 10: Unhooking Damping

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S60 and V70

Unhook the damping.

Fig 11: Removing Screws, Connectors, And Glove Box

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S60 and V70

Remove:
- the eight screws.
- the connector for the glove box lighting.
- the connector for the foot well lighting.
- the glove box.

Fig 12: Identifying Weatherstrip And Safety Clip Removed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the weatherstrip (1) for the door at the A-pillar.
Pull off the panel.
Cut off the safety clip (2).
Lift the panel upwards and inwards in the vehicle.
NOTE:
Ensure that the guide lugs on the panel do not scratch the dashboard.
Turn the safety clip a quarter turn. Remove the safety clip.

Fig 13: Folding Down Cover And Squeezing Catches Together

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold down the cover (1) by pulling the front edge of the cover downwards.
Squeeze the catches (2) together. Pull down the front edge of the panel and then pull it off by its rear edge.

Fig 14: Removing Screws And Pressing In Catches

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screws (1).
Press in the catches (2).
Carefully pull off the interior lights and allow them to hang from their cables.

Fig 15: Taping Foam Tape On Microphone Cable Starting 60mm From Microphone

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tape a 700 mm length piece of foam tape on the microphone cable starting 60 mm from the microphone.

Fig 16: Routing Cable To Microphone By Black Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Route the cable to the microphone by the black connector.

Fig 17: Pulling Down Headlining And Routing Cable To A-Pillar

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully pull down the headlining and route the cable above it, to the A-pillar.

Fig 18: Cleaning Microphone And Headlining And Removing Backing Tape From Velcro Strip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the ceiling panel and at the same time adjust the length of the cable.
Clean the microphone and the headlining in the area shown in the illustration, which corresponds to the size of the double-sided adhesive tape. Use a solution of 25% isoproanol and 75% water, as well as a lint free cloth.
Dry with care, do not rub.
Allow to dry.

NOTE:

In cases where the area is heavily soiled or treated with cockpit shine. First clean using a washing up detergent (FAIRY or similar).

Remove the backing tape from one side of the Velcro strip and press it onto the microphone.

Fig 19: Pressing Microphone Into Place

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the remaining protective film from the Velcro strip. Press the microphone securely into place.
NOTE:
Direct the microphone towards the driver. Make sure that it does not obstruct adjustment of the rear view mirror and insert the excess cable under the panel.

Fig 20: Securing Cable To A-Pillar Using Foam Tape

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the cable down along the A-pillar to the dashboard.
Cut off 2 x 100x50mm pieces of foam tape in the middle.
Secure the cable to the A-pillar using foam tape.
CAUTION:
The inflatable curtain (IC) is located inside the A-pillar panel, it is important that the cable is not positioned on it.

Fig 21: Routing Cable Along Lower Side Of Dashboard To Center Console

Courtesy of VOLVO CARS OF NORTH AMERICA.

Route the cable along the lower side of the dashboard, to the center console.
Install a new safety clip on the A-pillar panel.
NOTE:
It is important that a new safety clip is used when installing the A-pillar panel.
Press the A-pillar panel into place.
Reinstall the weatherstrip in the door opening.
NOTE:
It is important that the safety clip/hook and panel are correctly installed so that the SRS system is not affected.

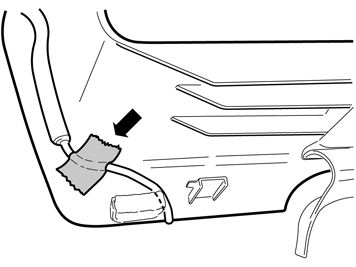

Fig 22: Securing Cable On Heater Unit Using Tape

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cut off a 100x50mm piece of foam tape in the middle.
Secure the cable on the heater unit using the pieces of tape.

Fig 23: Removing Rubber Seal From Upper Steering Column Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lock the steering wheel in the lowest, rearmost position.
Remove the rubber seal from the upper steering column cover by carefully prying off the hooks.

Fig 24: Removing Surround By Prying Lower Edge Till Clips Release And Pulling Back Until Clips At Top Edge Release

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S60 and V70

Remove the combined instrument panel surround by carefully prying the lower edge so that the two clips release.
Then pull the surround back until the three clips at the top edge release.
NOTE:
Do not damage the dashboard.

Fig 25: Removing Screws And Pulling Out Combined Instrument Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S60 and V70

Remove the 4 x screws.
Pull out the combined instrument panel without disconnecting the connector.
Place the combined instrument panel to the left-hand side.

Fig 26: Cut-Out For Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S60 and V70

File a cut-out for the cable in the surround.

Fig 27: Identifying Long Piece Of Foam Taped On Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S60 and V70

Take a 700 mm piece of foam tape and cut off 20 mm.
Tape the long piece of foam tape on the cable, starting 50 mm from the control panel.

Fig 28: Cleaning Area On Dashboard

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S60 and V70

Clean the area on the dashboard as shown in the illustration, which corresponds to the size of the double-sided adhesive tape. Use a solution of 25% isopropanol and 75% water, as well as a lint free cloth.
Dry with care, do not rub.
Allow to dry.

NOTE:

In cases where the area is heavily soiled or treated with cockpit shine, first clean using a washing up detergent.

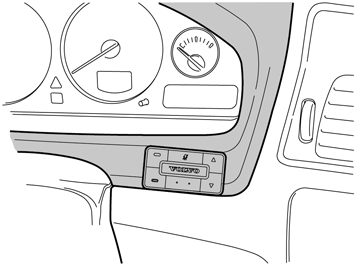

Fig 29: Aligning Control Panel With Surround

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S60 and V70

Remove the protective film from the tape on the reverse of the control panel.
Align the control panel with the surround. The lower edge of the tape must be at the upper edge of the beveled section of the surround.

Fig 30: Identifying Tape Applied To Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S60 and V70

Fold in and secure the cable on the reverse of the surround using the cut piece of tape (20 mm).

Fig 31: Routing Cable Through Opening And Pulling To Right Of Center Console

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S60 and V70

Route the cable through the opening and pull it to the right of the center console.
Reinstall the combined instrument panel. The cable must be above the combined instrument panel.

Fig 32: Identifying Surround And Rubber Seal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S60 and V70

Reinstall the surround and rubber seal.

Fig 33: Cleaning Area On Dashboard

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the area on the dashboard as shown in the illustration, which corresponds to the size of the double-sided adhesive tape. Use a solution of 25% isopropanol and 75% water, as well as a lint free cloth.
Dry with care, do not rub.
Allow to dry.

NOTE:

In cases where the area is heavily soiled or treated with cockpit shine, first clean using a washing up detergent.

Fig 34: Control Panel Cable Placed In Groove LHD

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place the control panel cable in the groove as shown in the illustration.

Fig 35: Control Panel Cable Placed In Groove RHD

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 36: Pressing Control Panel On Dashboard

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the protective film from the tape on the reverse of the control panel.
Align and press the control panel on the dashboard.

Fig 37: Connecting Adapters Green And Gray Connector To Vehicle's Cable Harness And Tape Around Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the adapter cable's green and gray connector (1) to the vehicle's cable harness (2).
Take a 700 mm piece of foam tape and cut into three pieces of the same length. Tape one piece around connector (1) and (2).
Connector (3) is later connected to the stereo. Place the connected gray connector up to the left

Applies to cars with extra amplifier

Take the gray connector located up to the left in the center console.
Remove the foam tape.
Disconnect the connectors and connect the 2 x grey adapter cable connectors.
Reinstall the foam tape.

Fig 38: Positioning Connected Gray Connector Up To Left And Connected Green Connector At The Bottom

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cut the protective casing for the cable harness with antenna cable, approximately 120 mm.
Position the connected gray connector up to the left and the connected green connector at the bottom by the middle so that they are not obstructive when installing the radio.

Fig 39: Taping Foam Tape Around Mute Relay And Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the cables to the mute relay.
Tape a thick piece of foam tape around the mute relay and the connectors.

Fig 40: Securing Mute Relay To Bracket For A/C Unit With Tie Strap

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take a large tie strap from the kit and secure the mute relay to the bracket for the A/C unit.

Fig 41: Connecting Cable Harness To Control Module And Locking Catches

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the cable harness to the control module (1).
Lock the catch (2).

Fig 42: Taping Pieces Of Foam Tape To Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tape two thick pieces of foam tape to the control module.

Fig 43: Placing Control Module Between A/C Unit And Floor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place the control module between the A/C unit and the floor.
Pull up the cable harness to the center console.

Fig 44: Connecting Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connectors, see:
1. 1. Adapter cable
2. 2. Microphone
3. 3. Control panel

Fig 45: Wrapping Foam Tape Around Connectors And Securing Connectors And Excess Wiring To Center Console With Tie Strap

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take one of the cut pieces of foam tape and tape around the connectors.
Take a large tie strap from the kit and secure the connectors and excess wiring to the inside of the center console.

Fig 46: Ignition At II Position And Negative Lead Connected

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the detached components in reverse order.
Turn the ignition key to position II .
Reconnect the battery negative lead

Fig 47: Control Panel Buttons

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carry out a function test as follows:

Set the ignition switch to position I .
Turn on the radio.
Check that the control panel for Bluetooth lights up.
Press the button (1) in the middle of the control panel. The radio should mute and a voice should be heard.
Press the button (2). The voice should stop and the radio sound should return.
