Connection to CD drive and TMC receiver, only applies to cars in Europe

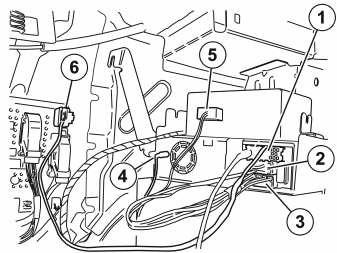

Applies to cars without towbar from model year 2005-

Connect:

• the cables (1) with yellow, green and blue connectors in the routed cable harness to the CD drive (yellow connector to the left in the connection)
• the cable (2) with brown connector in the routed cable harness to the CD drive
• the cable (3) with black connector in the routed cable harness to the CD drive
• the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive
• the cable (5) from the antenna amplifier under the right-hand rear lamp to the TMC receiver
• the cable (6) with large black connector to the socket for towbar wiring in the fuse holder

Clamp all excess cable with a tie strap from the kit, on the left-hand side in the rear edge of the wheel housing in a suitable way, so that there is no rattling.

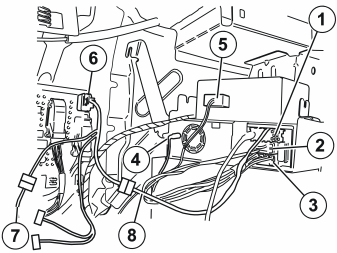

Applies to cars with towbar from model year 2005-

Connect:

• the cables (1) with yellow, green and blue connectors in the routed cable harness to the CD drive (yellow connector to the left in the connection)
• the cable (2) with brown connector in the routed cable harness to the CD drive
• the cable (3) with black connector in the routed cable harness to the CD drive
• the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive
• the cable (5) from the antenna amplifier under the right-hand rear lamp to the TMC receiver
• the adapter wiring (6) from the kit with large black and grey connectors, to the socket for towbar wiring in the fuse holder (existing connector to the towbar wiring in the fuse holder is detached)
• the cable (7) from the towbar wiring to the adapter wiring
• the cable (8) in the routed cable harness to the adapter wiring

The two grey connectors shall not be used. Clamp them up together with all excess cables using a tie strap from the kit, on the left-hand side in the rear edge of the wheel housing in a suitable way, so that there is no rattling.

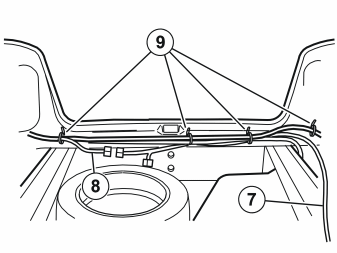

Applies to cars without towbar up to and including model year -2004

Connect:

• the cable (1) with yellow, green and blue connectors in the routed cable harness to the CD drive (yellow connector to the left in the connection)
• the cable (2) with brown connector in the routed cable harness to the CD drive
• the cable (3) with black connector in the routed cable harness to the CD drive
• the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive
• the cable (5) from the antenna amplifier under the right-hand rear lamp to the TMC receiver
• the cable (6) in the adapter wiring from the kit, with large black and grey connectors, to the corresponding connector in the routed cable harness
• the cable (7) in the adapter wiring is routed to the rear crossmember, over the rear end of the left-hand side member, to the pre-routed grey connector for the towbar wiring

• the cable (8) with grey connector to the towbar wiring, to the corresponding connector in the routed adapter wiring

The two black connectors shall not be used. Clamp them up together with all excess cables using a tie strap from the kit, on the left-hand side in the rear edge of the wheel housing in a suitable way, so that there is no rattling.

• Clamp up the adapter wiring together with the excess grey connector and cable to the antenna amplifier, along the rear crossmember, with four tie straps (9) from the kit.

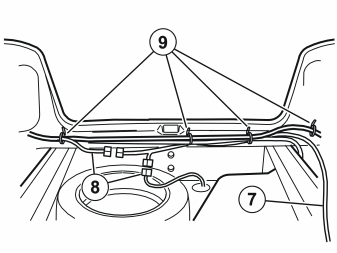

Applies to cars with towbar model year -2004

Connect:

• the cable (1) with yellow, green and blue connectors in the routed cable harness to the CD drive (yellow connector to the left in the connection)
• the cable (2) with brown connector in the routed cable harness to the CD drive
• the cable (3) with black connector in the routed cable harness to the CD drive
• the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive
• the cable (5) from the antenna amplifier under the right-hand rear lamp to the TMC receiver
• the cable (6) in the adapter wiring from the kit with large black and grey connectors, to the corresponding connector in the routed cable harness
• the cable (7) in the adapter wiring is routed to the rear crossmember, over the rear end of the left-hand side member, to the connectors for the towbar wiring

• pull apart the connectors (8) to the towbar wiring and connect to them the two grey connectors in the adapter wiring

The two black connectors shall not be used. Clamp them up together with all excess cables using a tie strap from the kit, on the left-hand side in the rear edge of the wheel housing in a suitable way, so that there is no rattling.

• Clamp up the adapter wiring and cable to the antenna amplifier along the rear crossmember with four tie straps (9) from the kit.
