installation (only applies to cars with RTI)

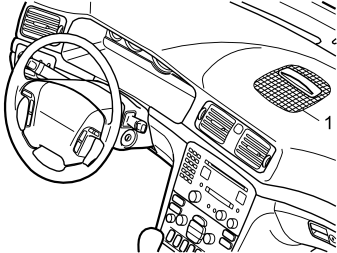

Fig 1: Remove Loudspeaker Grille

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the loudspeaker grille (1).

Fig 2: Remove Screws From RTI Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the screws (1) from the RTI unit (2).

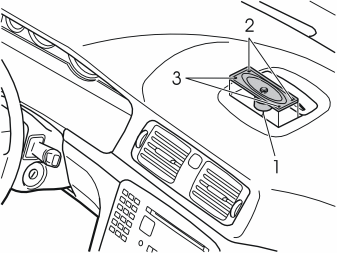

Fig 3: Connect Pre-Routed Cable To Loudspeaker And Install Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Connect the pre-routed cable (1) to the loudspeaker.
• Install the screws (2) from the RTI unit and the screws (3) from the kit. Tighten the screws.
• Reinstall the loudspeaker grille.
