Installing in the glove compartment

• Open the glove compartment.
• Remove the holders for the cover for the glove compartment.
• Remove the screws from the glove compartment. Pull the glove compartment out.

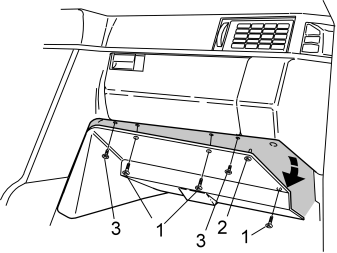

• Remove the screws (1).
• Remove the clip (2).
• Remove the screws (3).

• Remove the trim cover and the screws.
• Remove the glove compartment by pulling the glove compartment to the right and backwards.

• Open the glove compartment.

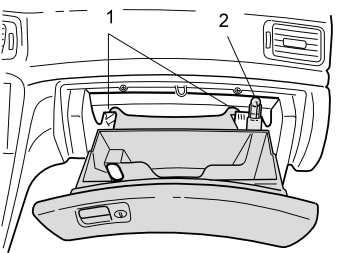

• Carefully pull the catches (1) backwards until they release.
• Pull off the spring holder from the upper mounting (2).

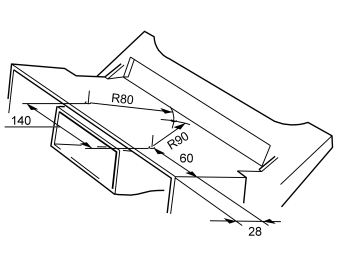

• Measure and drill holes in the glove compartment. Use a Ø5 mm (13/64") drill bit.

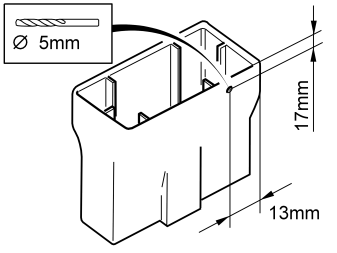

• Measure and drill the hole in the CD storage box. Use a Ø5 mm (13/64") drill bit.

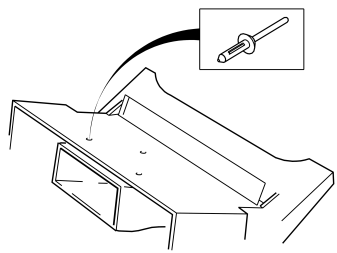

• Position the CD storage box in the glove compartment. Install a rivet as a guide by hand. Do not rivet into place.
• Hold the opening of the CD storage box parallel with the edge of the glove compartment. Drill the next hole in the CD storage box using the glove compartment as a template.
• Install a rivet by hand in the new hole. Do not rivet into place.
• Drill the last hole in the CD storage box using the glove compartment as a template.
• Remove the CD storage box.

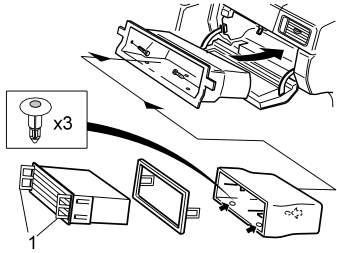

Install:

• the glove compartment.
• the CD bracket in the glove compartment. Use the supplied clips.
• the frame on the CD bracket.
• the CD holder in the CD bracket. Ensure that the covers for the CD compartment on the CD holder hang downwards at the open position. Press in the catches (1).

• Clean the mating surfaces.
• Rivet the CD storage box and the glove compartment together.
• Install the frame.
• Install the CD compartment. Press in the catches (1) (see illustration).
• Install the spring holder (2) in the upper mounting (see illustration).
• Close the glove compartment.
