Removing the panel gear selector lever

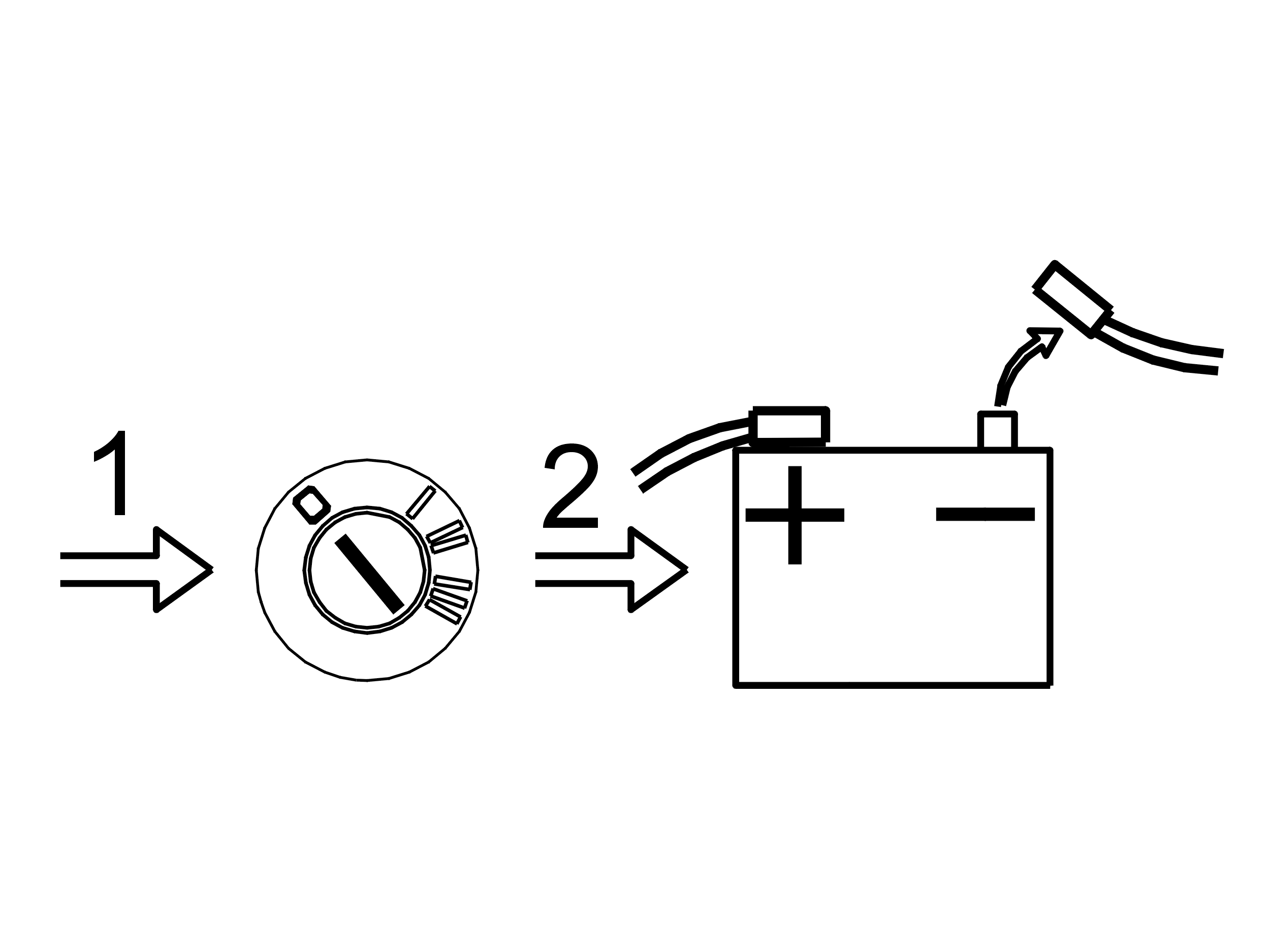

Fig 1: Disconnecting Battery Negative Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Shift the gear selector lever to its rearmost position.

Ignition off

Disconnect the battery negative cable. See: Battery, disconnecting .

Fig 2: Detaching Panel At Gear Selector Lever

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the gear selector lever panel as shown in the illustration.

Fig 3: Four Catches On Underside

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the frame by pressing in the 4 catches.
