Towbar, hitch, license plate holder

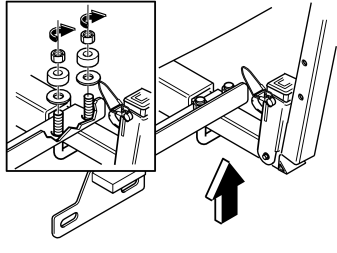

Image A applies when mounting on the holder's horizontal square tube

Fig 1: Image "A" Applies When Mounting On The Holder's Horizontal Square Tube

Courtesy of VOLVO CARS OF NORTH AMERICA.

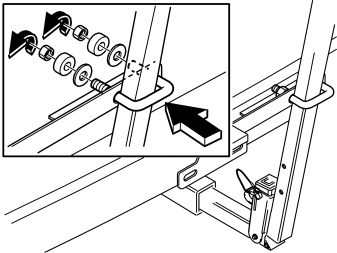

Image B applies when mounting on the holder's vertical square tube

Fig 2: Image "B" applies when mounting on the holder's vertical square tube

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Take the license plate holder and tighten it at the holder with the clamp, spacer sleeves and nuts from the kit as shown in the illustration. Tighten the nuts to 7 Nm (5.2 lbf. ft)  .

Fig 3: Take Two Screws From Kit And Tighten License Plate Into Place

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Take the two screws from the kit and tighten the license plate into place.

Fig 4: Connect Connector For License Plate Holder's Lighting To Corresponding Connector From Car

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Connect the connector for the license plate holder's lighting to the corresponding connector from the car.
