Bicycle holder with hoist

Fig 1: Folding Up Lever And Releasing Lever By Pulling Red Catch

Courtesy of VOLVO CARS OF NORTH AMERICA.

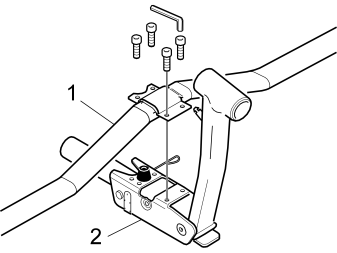

Fig 2: Positioning Front-Rear Strut And Securing Strut On Bracket For Lever

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the front-rear strut (1) as shown in the illustration
Secure the strut on the bracket for the lever (2). Use the short Allen screws from the kit. Tighten crosswise. Tighten to 9-11 Nm (6.5-8 lbf. ft.) .

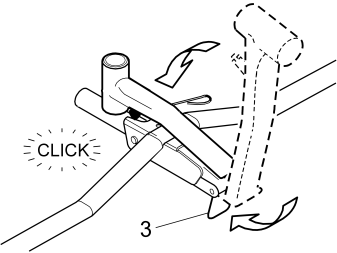

Fig 3: Folding Lever Back Into Place By Pressing Red Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold the lever back into place by pressing the red plate (3).
NOTE:
If the lever does not release with the red plate, the lever will spring back under considerable tension.

Fig 4: Sliding Extensions Into Front-Rear Strut And Locking Into Place Using Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slide the extensions (1) into the front-rear strut. Lock into place using the screw (2).

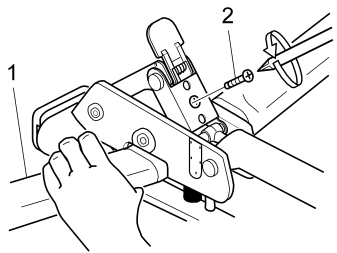

Fig 5: Holding Front-Rear Strut, Turning Bicycle Holder And Removing Transportation Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING:

Hold the front-rear strut (1) as shown in the illustration to avoid trapping fingers.

Fig 6: Installing Wheel Holders By Twisting Them With One Wheel Holder On Extension And One On Strut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the wheel holders (1) by twisting them. One wheel holder must be on the extension (2) and one on the strut (3).
NOTE:
Only one wheel holder may be positioned on the extension.
Position the short straps (4).

Fig 7: Inserting Strap For Saddle Holder

Courtesy of VOLVO CARS OF NORTH AMERICA.
