Siren, Replacing: Removal

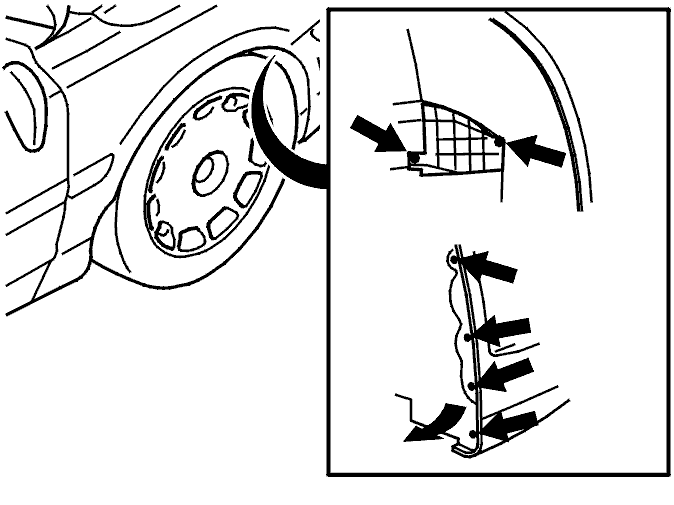

Fig 1: Protective Panel In The Fender Liner, Plastic Nuts And Blind Rivets

Courtesy of VOLVO CARS OF NORTH AMERICA.

Deactivate alarm
Turn the front wheels to the right
Knock out or drill out the blind rivets from the front edge of the fender liner
Remove the plastic nuts from the protective panel in the fender liner. Remove the protective panel
Disconnect the front edge of the fender liner. Move the fender lining out of the way.

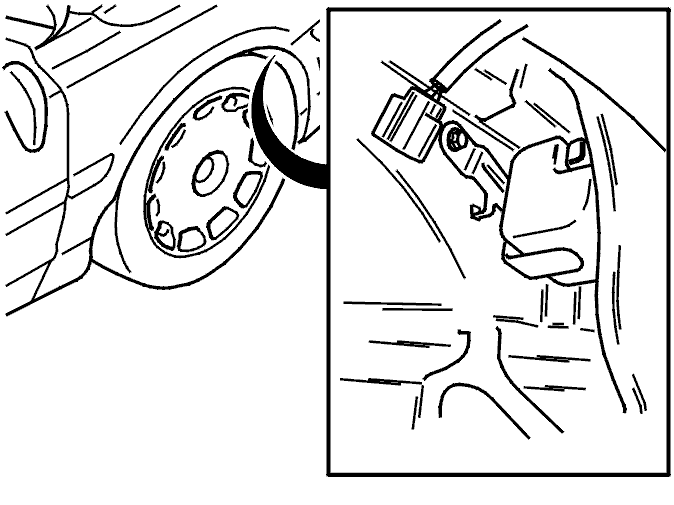

Fig 2: Locating Siren And Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.
