Switches And Components: Sensors

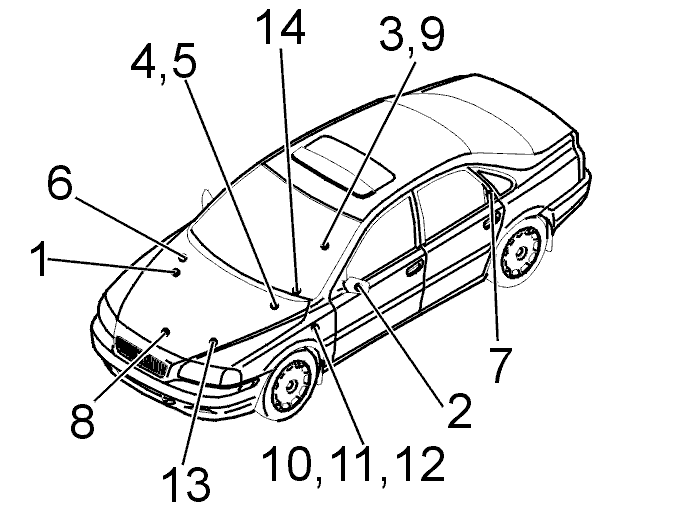

Fig 1: Locating Sensors
GLL103180Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Engine coolant temperature (ECT) sensor
  2. Outer temperature sensor
  3. Parking brake switch
  4. Pedal sensor for the power brake booster
  5. Brake fluid level sensor
  6. Engine coolant level sensor
  7. Left fuel level sensor
  8. Oil pressure sensor
  9. Yaw rate and lateral acceleration sensors
  10. Accelerator pedal (AP)
  11. Clutch pedal position sensor
  12. Stop lamp switch
  13. Back-up (reversing) lamps switch
  14. Start switch.
