Removing The Rear Bushing

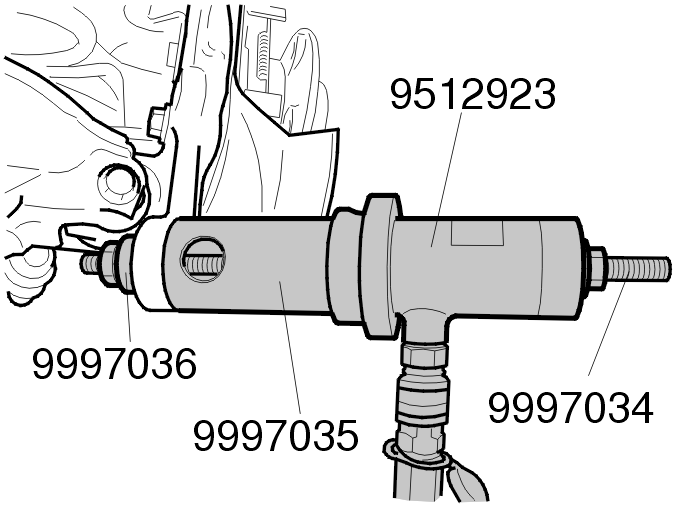

Fig 1: Installing Hydraulic Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold down the lateral link carefully
Use tool 9512923 with 9997054 , 9997035 , 9997036 and 9997034
Bend the brake cover outwards slightly so that there is room for the hydraulic cylinder
Pull the bushing out.

NOTE:

Center 9997040 carefully on the bushing to prevent damaging the spindle when pulling out.
