Measuring Before Removal

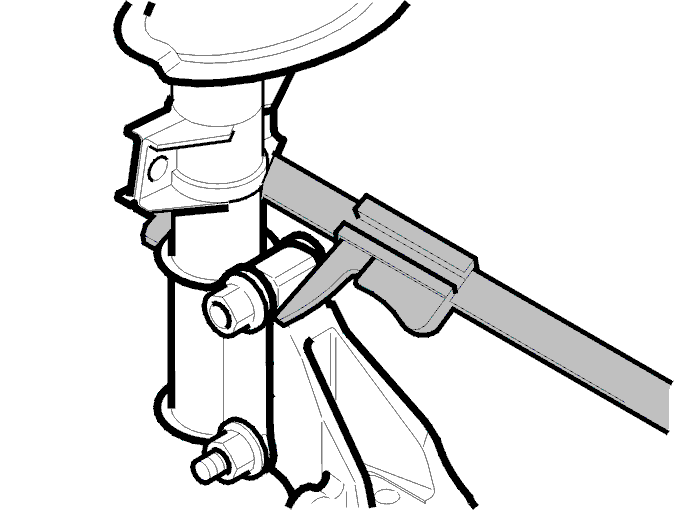

Fig 1: Measuring Over Wheel Spindle/Spring Strut At Upper Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

The measurements are made so that the same camber angle can be obtained when installing.

Measure over the wheel spindle / spring strut at the upper screw as illustrated.

Before measuring clean off any dirt from the measuring surfaces.

Note the measurement.
