Installing the bracket

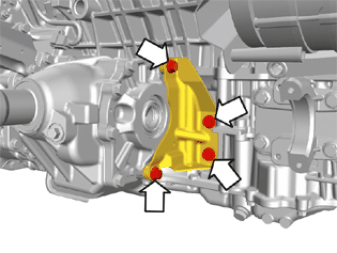

Fig 1: Bevel Gear Bracket Screws

GLL150143

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the bracket and tighten the 4 M10 screws.
