Installing gear selector cable

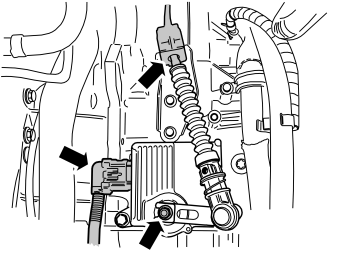

Fig 1: Gear Selector Cable And TCM Connection

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the gear selector cable
• the cable bracket to the transmission
• the connection for the Transmission control module (TCM)
• the ground lead
• clamp for the coolant hoses (applies to vehicles with fuel heater)
