Location of components

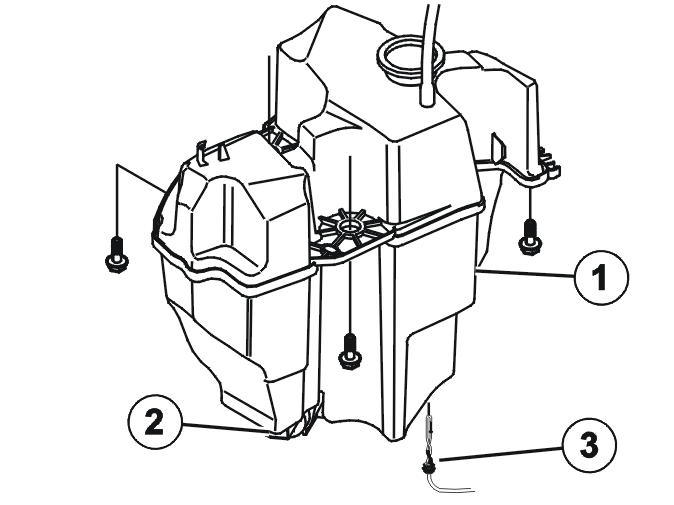

Fig 1: Identifying Washer Motor Windshield/Rear Windshield And Components
GLL146404Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Washer motor windshield/rear windshield
  2. Headlamp washer motor, high-pressure
  3. Level sensor.
