Reinstall bumper

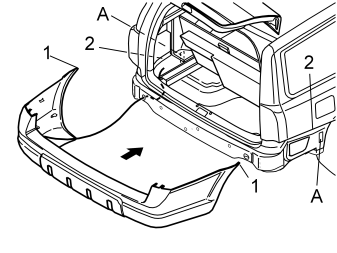

Fig 1: Identifying Bumper Reinstallation

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Ensure that the loose mountings (A) for the sides of the bumper are in position on the right and left sides.

Reinstall the bumper. Locate the ends of the bumper (1) in the rails (2). Push in
Reinstall and tighten the nuts. Tighten to 18 Nm (13 lbf. ft.) .
