Pre-drill holes

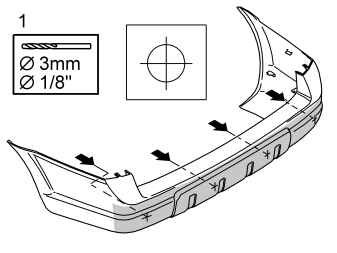

Fig 1: Identifying Hole Locations And Drill Bit Diameter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pre drill 3 mm (1/8") diameter holes at the existing marks on the inside of the bumper cover.
