Install CD player

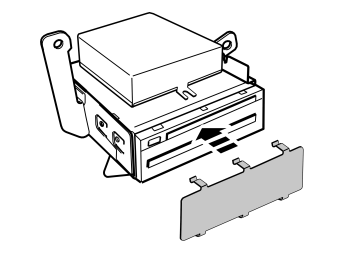

Fig 1: Identifying CD Cover Installation

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Take the cover from the kit.
• Press the cover in over the CD player's front panel.
  NOTE:

  All 6 tabs must make contact with the CD player's chassis.

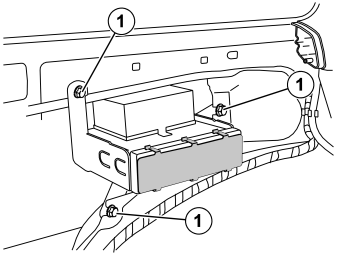

Fig 2: Identifying CD Unit Installation

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall:

• the unit with 3 screws (1) and tighten the screws to 10 Nm (7 lbf ft)  .
• the insulation panel.
• the side panels.
• the floor hatches.
• Fold up the back and seat cushion.
• Turn the ignition key to position II.
• Reconnect the battery negative lead.
• Check the function.
  NOTE:

  When changing a disc the cover must be removed and then refitted.
