Remove headlamp

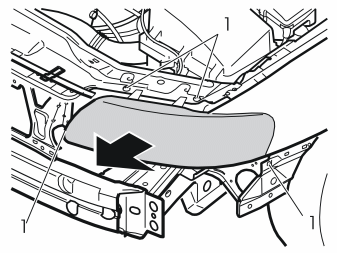

Fig 1: Identifying Headlamp Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carry out the following on the left-hand side of the car

• Remove the four screws (1) holding the headlamp to the body
• Pull out the headlamp slightly. Disconnect the connectors
• Remove the headlamp.
