Remove bumper and mounting bracket

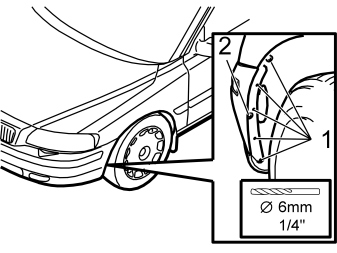

Fig 1: Locating Blind Rivets To Be Drilled-Out

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carry out the following on the left and right-hand sides of the car

• Drill out the four blind rivets (1) which hold the inner wing liner at the bumper
• Unscrew the screw (2). Press forward.

Fig 2: Identifying Bumper Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Push in the center of the clips (1). Remove the clips.

Fig 3: Identifying Bumper Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the two screws (1) holding the bumper
• Remove the bumper by pulling it forward to free it from the guides on the left and right-hand sides. If the car is equipped with fog lamps: Disconnect the connectors.

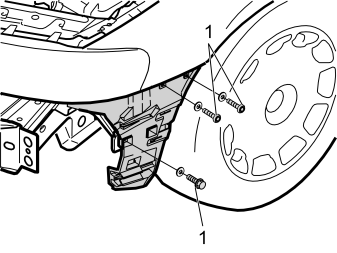

Fig 4: Identifying Bumper Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carry out the following on the left-hand side of the car

• Remove the bumper mounting bracket. First remove the three screws (1).
