Removing side panel and soundproofing panel

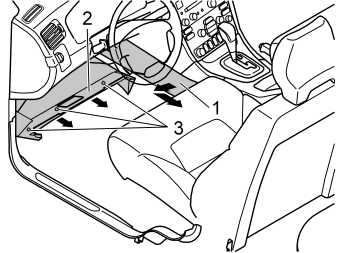

Fig 1: Identifying Side Panel, Soundproofing Panel, Screws, And Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the side panel (1). Slacken off the screw clip at the rear edge of the panel. Pull the panel outward / backward
• Remove the soundproofing panel (2). Carefully pry it loose. Use a weatherstrip tool or similar. The soundproofing panel is secured with three clips (3).
