Motor, tailgate wiper, replacing: Removal

• Remove the rear windshield wiper arm. See Tailgate wiper arm / blade, replacing
• Remove the tailgate panel. See Lower tailgate panel
• Press the mounting for the washer hose towards the motor.

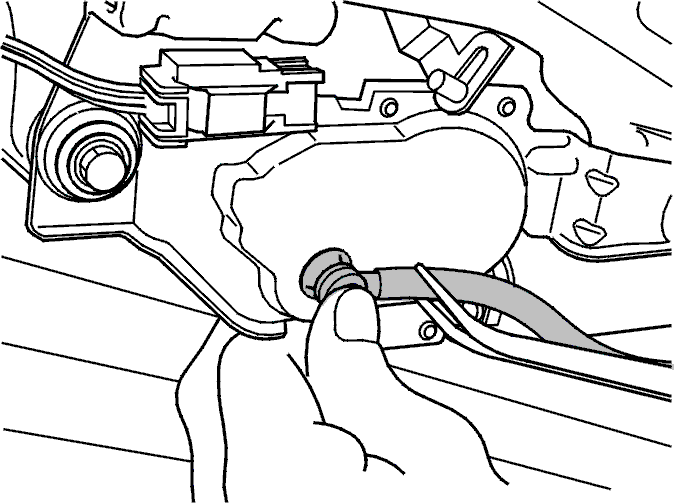

Fig 1: Locating Tailgate Wiper Washer Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the washer hose
• Disconnect the connector
• Remove the screws.

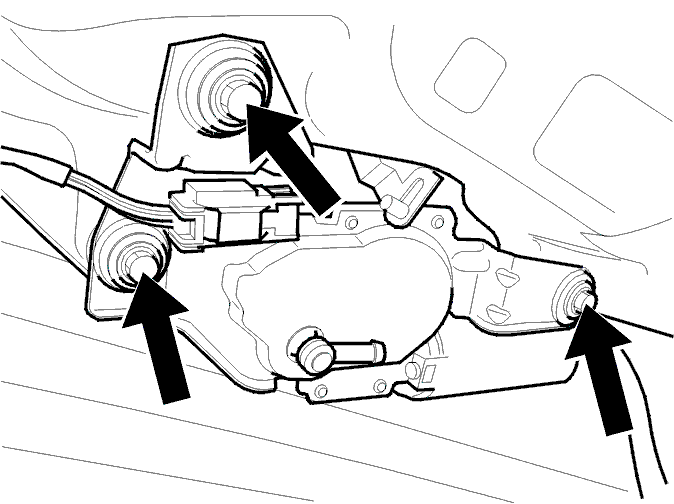

Fig 2: View Of Tailgate Wiper Mechanism And Motor

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the mechanism and motor.
