Removing the front camshaft seal

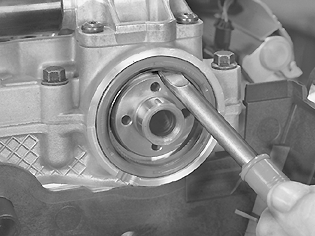

Fig 1: Prying Out Seal

GLL108920

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully press in tool 9995651 between the seal and the camshaft. Pry out the seal.
