Screen sleeve, installation: Installation

• Fold down the side panel on the left-hand side of the cargo compartment
• Slacken off the clips for the front side panel.

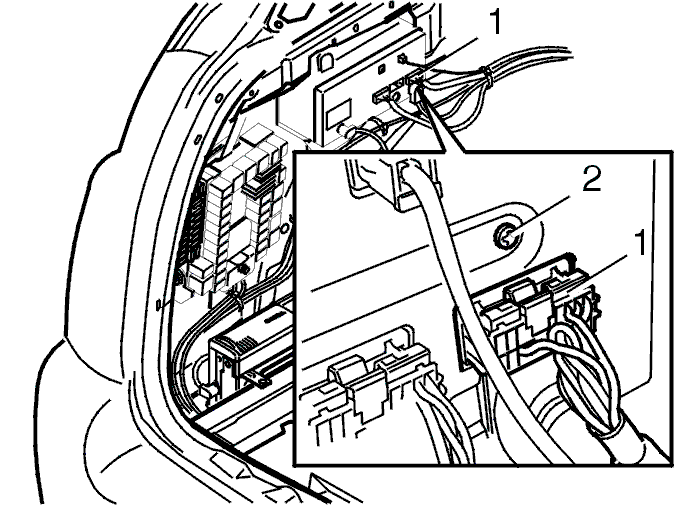

Fig 1: Identifying Switch And Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the switch (1)
• Remove the screw (2).

Fig 2: Identifying Screen

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Assemble the screen.

Fig 3: Sliding Screen Over Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Slide the screen over the connector.

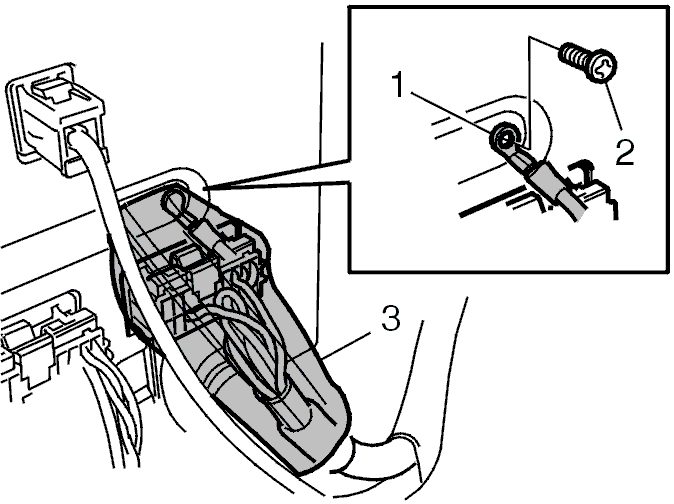

Fig 4: Identifying Connector Reinstalled

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Reinstall the connector (3).

• Secure the ground lead (1) using the screw (2)
• Adjust the screen so that it is located as close to the holder for the control module as possible
• Reinstall the side panel.
