Installing the printed circuit board on the gear selector assembly stop

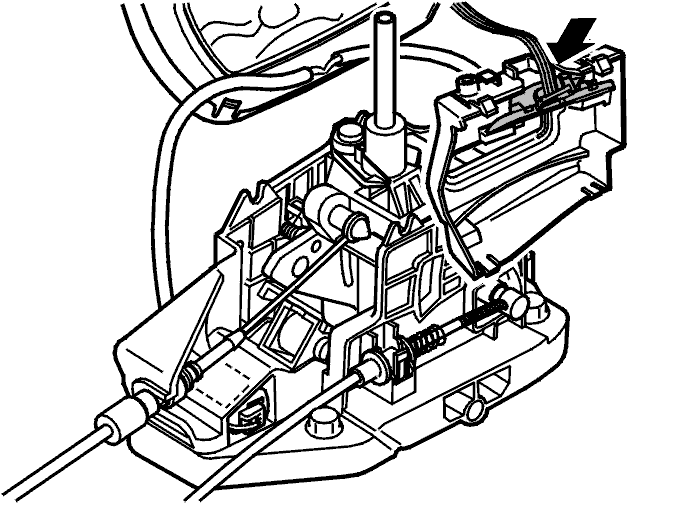

Fig 1: Removing Printed Circuit Board From Gear Selector Assembly Stop

Courtesy of VOLVO CARS OF NORTH AMERICA.

Angle the holder into the gear selector assembly stop. Lock it into place.

Alternatively: Install the printed circuit board in the cut-out in the holder and lock it into place. Reinstall the holder.
