Replacing dashboard environment panel

Fig 1: Identifying Ignition Key Off

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

Remove the key.

NOTE:

The key must be removed to ensure that the ignition is not switched on by mistake.

NOTE:

After the key has been removed: Wait 3minutes before starting work.

NOTE:

The gear selector must be in the rearmost position before the dashboard environment panel can be removed.

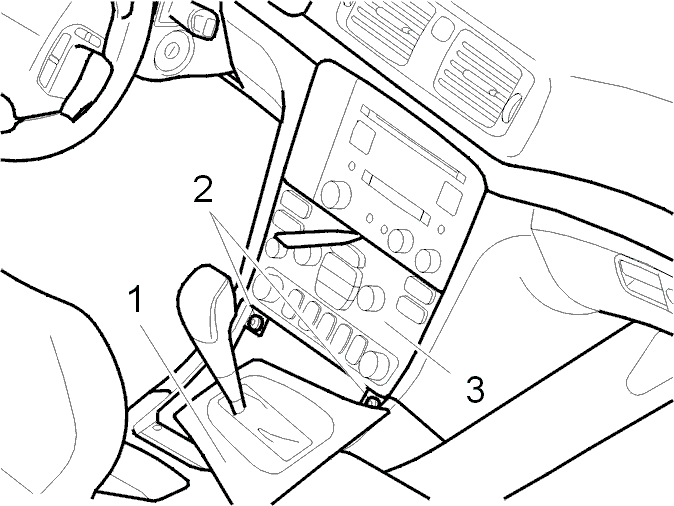

Fig 2: Prying Off Panel Above Gear Selector At Back Using A Weatherstrip Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the two screws (2) on the lower edge of the panel.
the panel (3).
NOTE:
The radio component and the dashboard environment panel are complementary and are mounted at the join with hooked mountings.

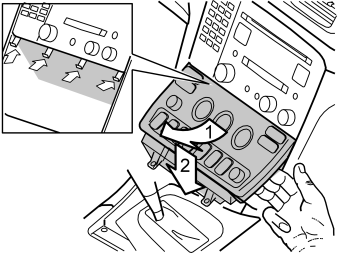

Fig 3: Angling Dashboard Environment Panel Outwards So That It Is Possible To Insert A Couple Of Fingers Between Center Console And Dashboard Environment Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: To facilitate removal: Angle the dashboard environment panel outwards so that it is possible to insert a couple of fingers between the center console and the dashboard environment panel.

HINT: Pull the dashboard environment panel downwards at the same angle.

HINT: The dashboard environment panel is correctly secured. Force is required to remove it.

connectors.

Lift out the panel.

Install:

In reverse order.

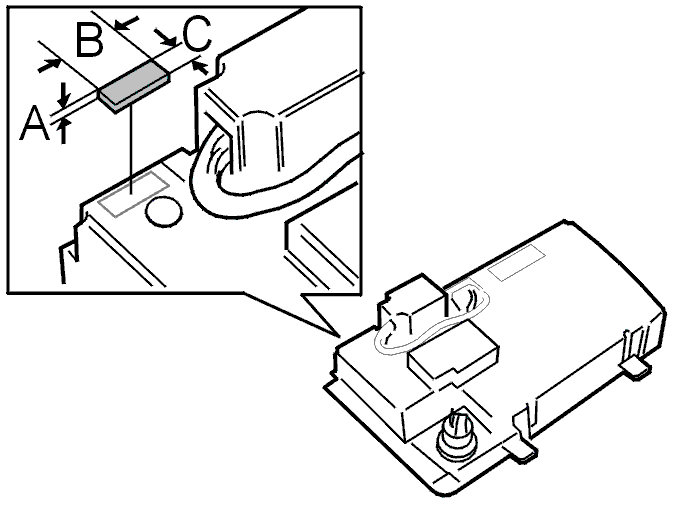

Fig 4: Identifying Component Taped On Back Of Dashboard Environment Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

If any of the outer hooks break off, this must be "rectified".

Tape the 3.5mm thick component measuring 20 X 20mm to the reverse of the dashboard environment panel. Use double-sided adhesive tape.

Fix the other side of the piece with double-sided adhesive tape so that there is a solid anchorage when reinstalling against the center console.
