Removing turbo 1

Fig 1: Locating Turbo Return Lines

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the pipe screw for the oil pressure pipe. Wipe up any oil spillage
• the oil return line
• the pipe screws for the coolant pipes.

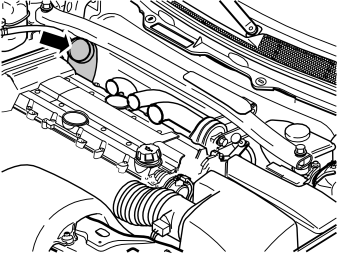

Fig 2: Identifying Intake Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the inlet pipe.

Remove the 2 x connectors for the front heated oxygen sensor (HO2S).

Lower the vehicle.
