Removing turbo 1, continued

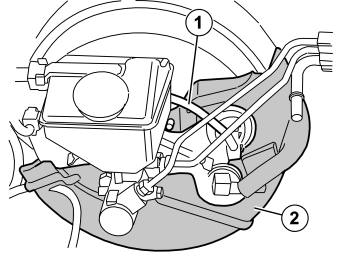

Fig 1: Identifying Vacuum Hose And heat Deflector Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the vacuum hose
• the heat deflector plate.

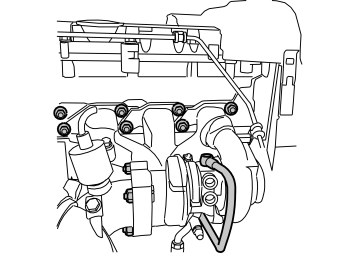

Fig 2: Identifying Oil Pressure Line

Courtesy of VOLVO CARS OF NORTH AMERICA.

• hose/pipe for pressure regulator control
• the oil pressure line

HINT: Use rust solvent.

• the 3 x nuts for the three-way catalytic converter (TWC)
• the nuts and washers at the manifold mounting at cylinders 1, 2 and 3. Carefully lift and twist the turbocharger and manifold to expose the oil pressure pipe.
