Installing turbo 1, continued

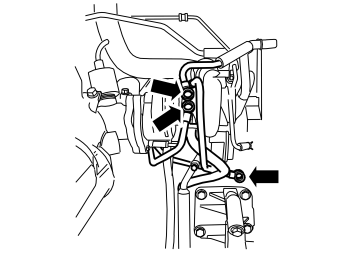

Fig 1: Locating Turbo Return Lines

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the oil pressure line. Tighten. See: Summary of tightening torques for specific components . Use a new  gasket
• the pipe screws for the oil pressure line. Tighten. See: Summary of tightening torques for specific components
• the inlet pipe.
