Installing the plastic charge air pipe and the plastic inlet pipe

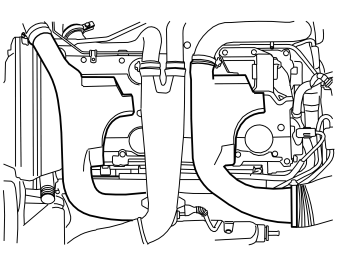

Fig 1: Identifying Charge Air Pipe and Intake Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the plastic intake pipe
• the plastic charge air pipe
• the vacuum hoses for the purge valve and turbocharger control valve
