Seat Belt TENSIONERS: Installation

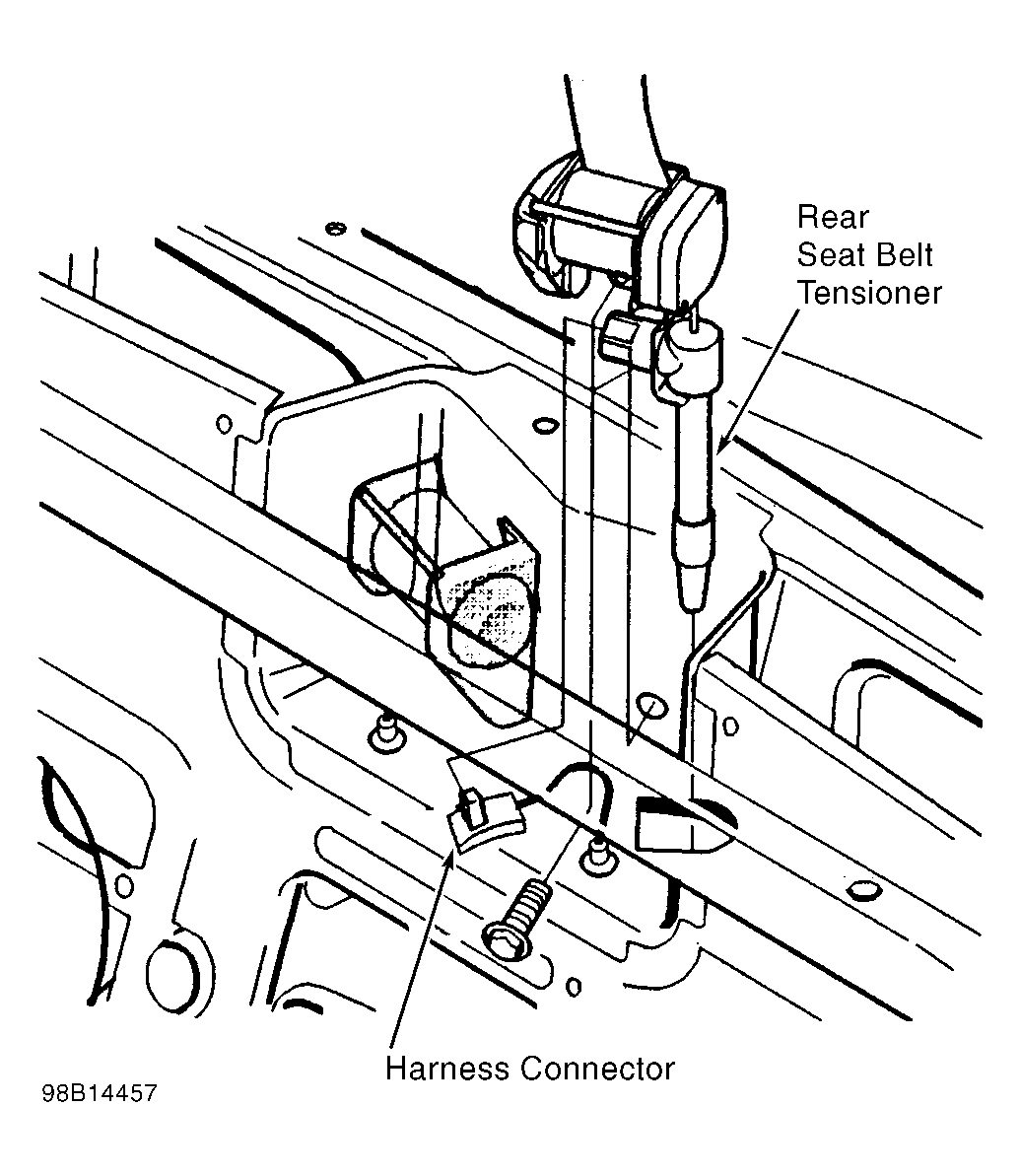

- To install, reverse removal procedure. Ensure SRS wire is positioned so as not to become pinched or cut. Tighten seat belt tensioner hex bolts to 30 ft. lbs. (40 N.m) and seat belt tensioner torx bolts to 53 INCH lbs. (6 N.m).
- Activate system. Check SRS warning light to ensure system is functioning properly. See SYSTEM OPERATION CHECK . If fault code exists after replacing new seat belt reel assembly, clear codes, and perform SYSTEM OPERATION CHECK again. If SRS warning light still indicates a malfunction, enter self-diagnostics and retrieve fault codes. See DIAGNOSTICS .
Courtesy of VOLVO

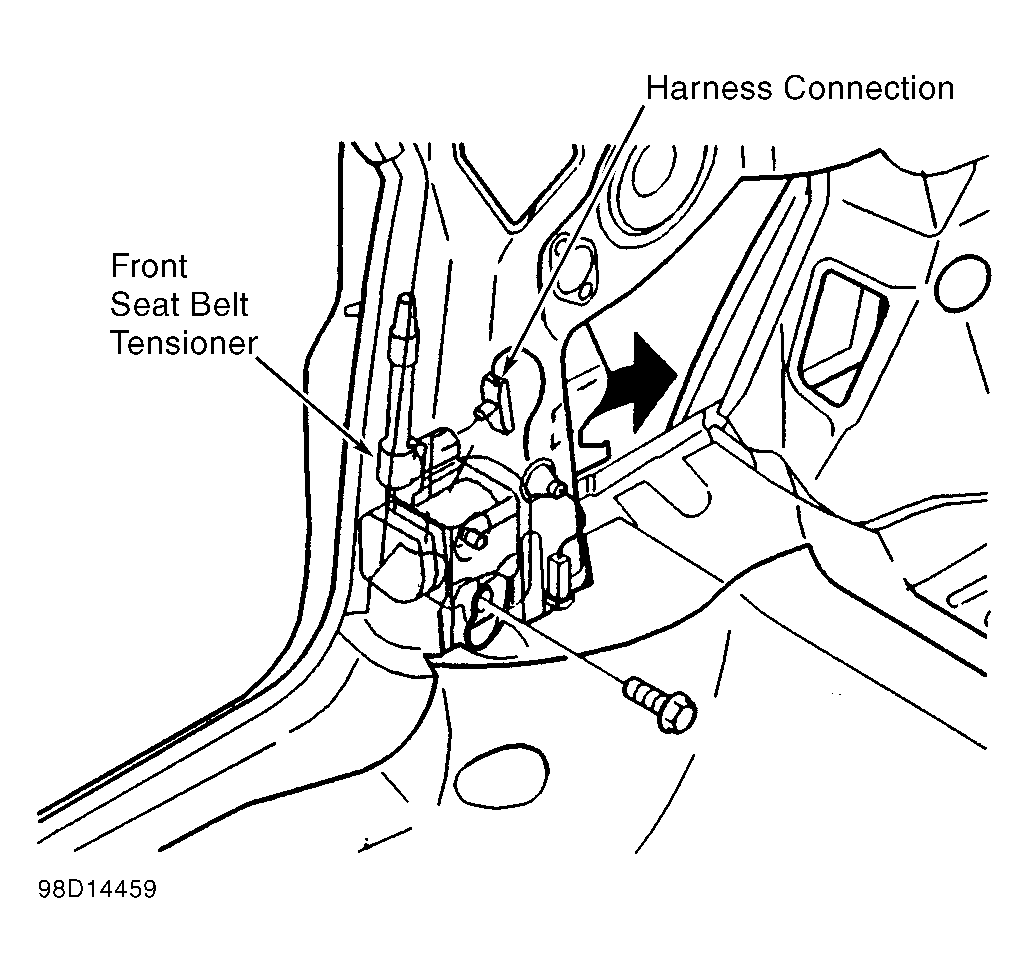

- To install, reverse removal procedure. Ensure SRS wire is positioned so as not to become pinched or cut. Tighten seat belt tensioner bolts to 35 ft. lbs. (48 N.m).
- Activate system. Check SRS warning light to ensure system is functioning properly. See SYSTEM OPERATION CHECK . If fault code exists after replacing new seat belt reel assembly, clear codes, and perform SYSTEM OPERATION CHECK again. If SRS warning light still indicates a malfunction, enter self-diagnostics and retrieve fault codes. See DIAGNOSTICS .
Courtesy of VOLVO

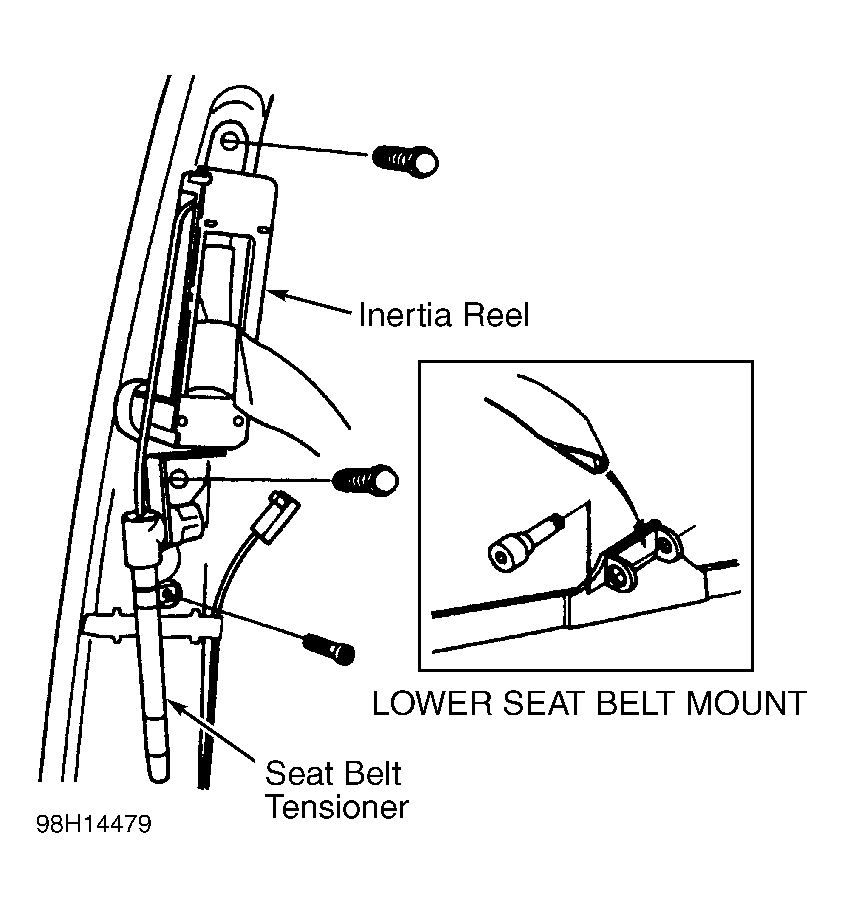

- To install, reverse removal procedure. Ensure SRS wire is positioned so as not to become pinched or cut. Tighten seat belt tensioner bolts to 35 ft. lbs. (48 N.m).
- Activate system. Check SRS warning light to ensure system is functioning properly. See SYSTEM OPERATION CHECK . If fault code exists after replacing new seat belt reel assembly, clear codes, and perform SYSTEM OPERATION CHECK again. If SRS warning light still indicates a malfunction, enter self-diagnostics and retrieve fault codes. See DIAGNOSTICS .
Courtesy of VOLVO
