Oil Cooler: Removal

  1. Raise and support the vehicle.
  2. Clamp both the oil cooler coolant hoses together with lock grip pliers.

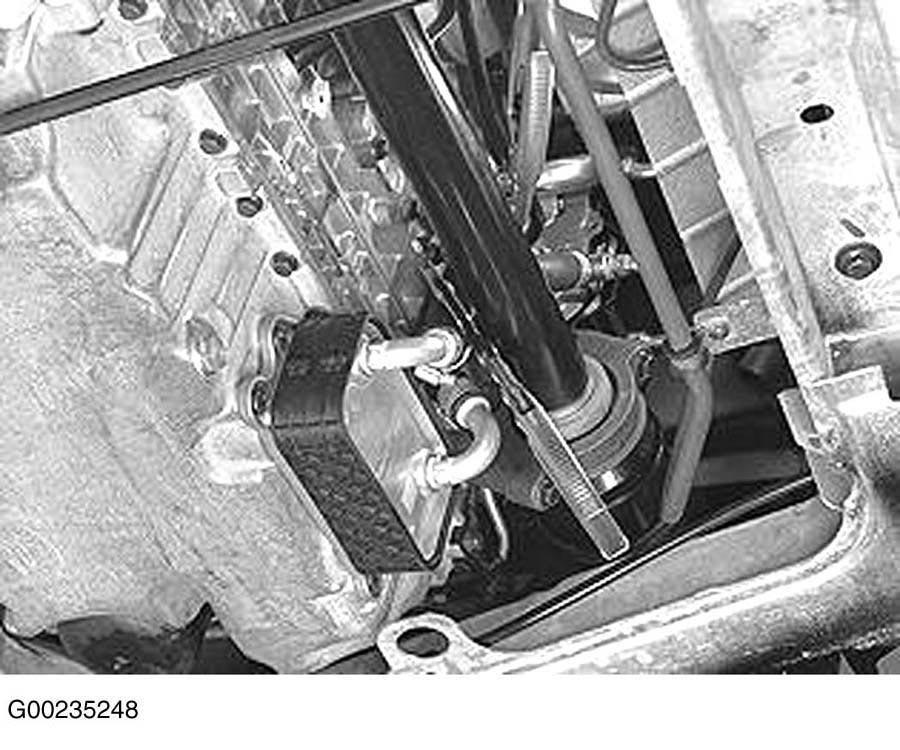

    Fig 1: Clamping Oil Cooler Hoses Together
    G00235248Courtesy of VOLVO CARS OF NORTH AMERICA.
  3. Remove the coolant hoses from the oil cooler.
  4. Remove the oil cooler mounting screws. Lift down the oil cooler.
