Valve Stem Oil Seals

Place new seal on valve stem. Remove protective sleeve. See Fig 1. Using Drift (5379), push seal onto stem by hand only as far as possible. See Fig 2. Do not use a hammer to install valve stem seals.

Fig 1: Exploded View Of Valve Stem Seal
G00240355Courtesy of VOLVO CARS OF NORTH AMERICA.

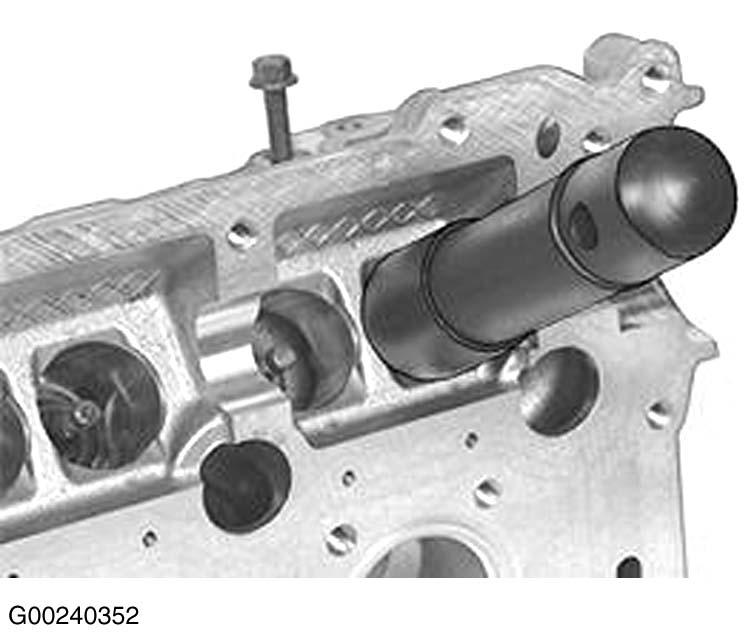

Fig 2: Installing Valve Stem Seal
G00240352Courtesy of VOLVO CARS OF NORTH AMERICA.
