Valve Guides

Replacement information is not available from manufacturer.Use a dial indicator and magnetic holder. Lift the valve approximately .078-.118" (2-3 mm) from the seat when carrying out the check. See Fig 1.

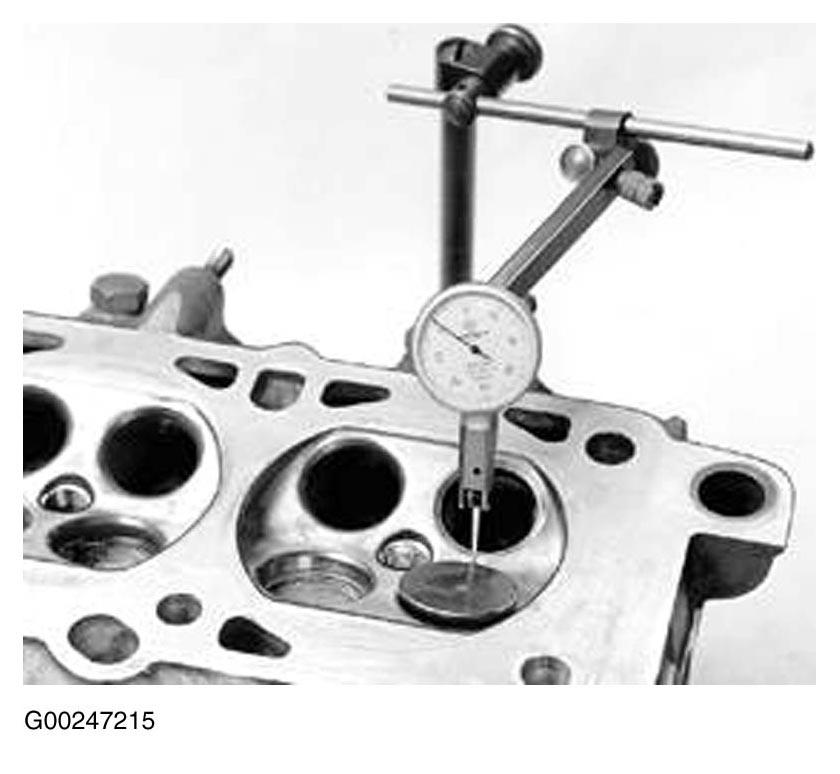

Fig 1: Measuring Valve Guide Wear
G00247215Courtesy of VOLVO CARS OF NORTH AMERICA.
