Removal & Installation (S90 & V90)

Ensure sun roof is completely closed. Remove side trim covers near sun roof by prying outward by hand. See Fig 3. Remove sun roof securing screws and lift out sun roof. See Fig 4.

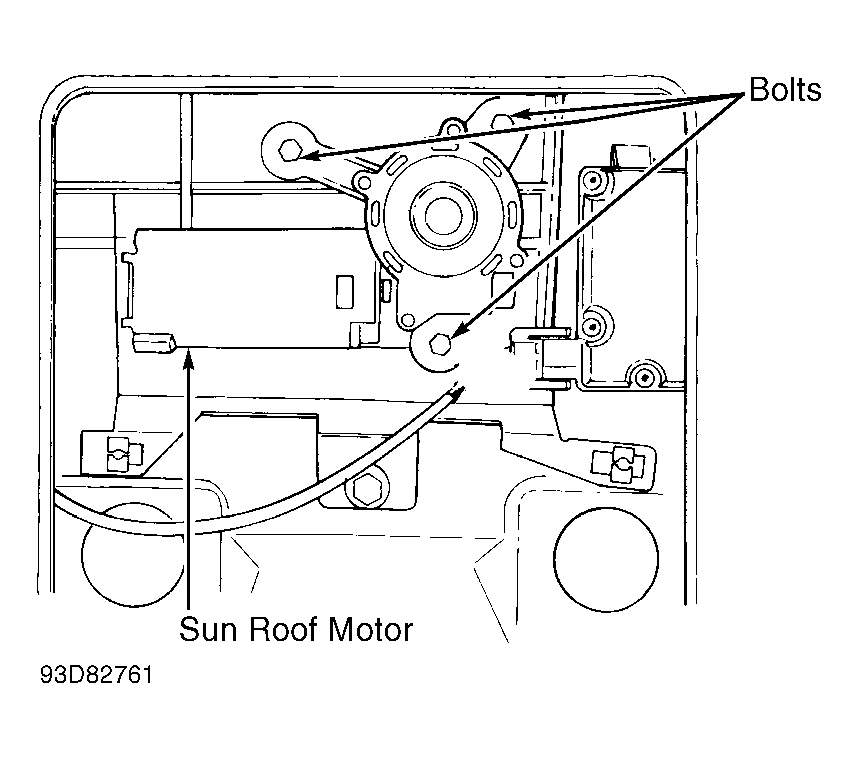

Fig 1: Removing Sun Roof Motor (C70, S70 & V70)

Courtesy of VOLVO CARS OF NORTH AMERICA

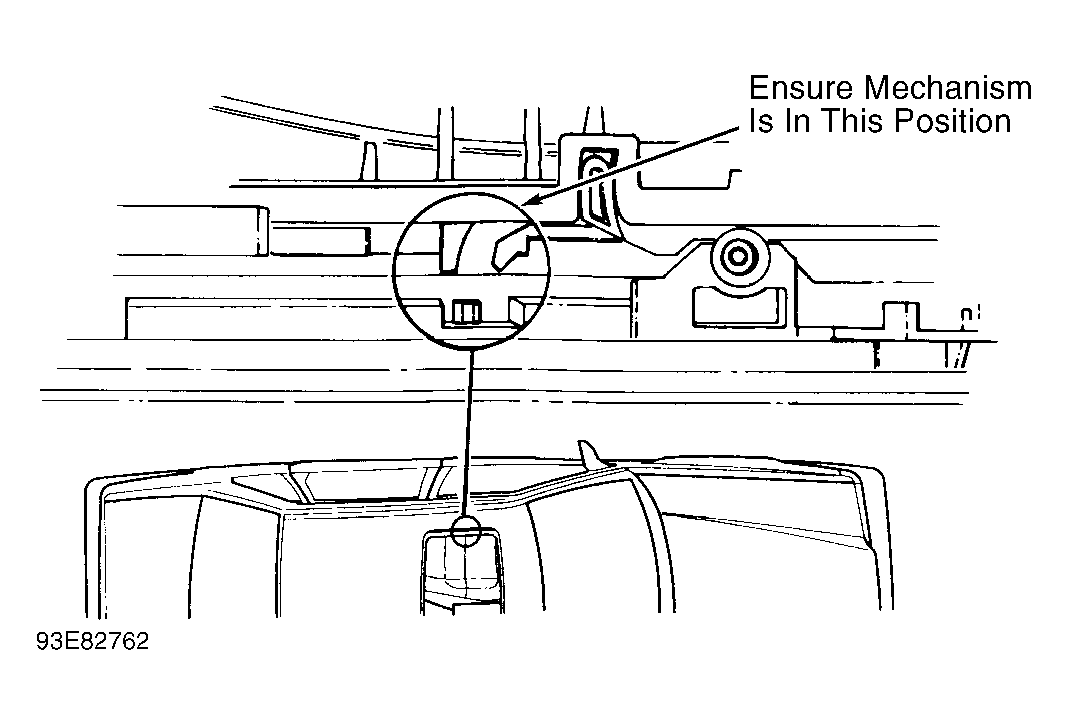

Fig 2: Positioning Sun Roof Hatch Mechanism (C70, S70 & V70)

Courtesy of VOLVO CARS OF NORTH AMERICA

Fig 3: Exploded View Of Sun Roof Components (S90 & V90)

Courtesy of VOLVO CARS OF NORTH AMERICA

Fig 4: Removing Sun Roof Securing Screws (S90 & V90)

Courtesy of VOLVO CARS OF NORTH AMERICA
