Removal & Installation (C70, S70 & V70)

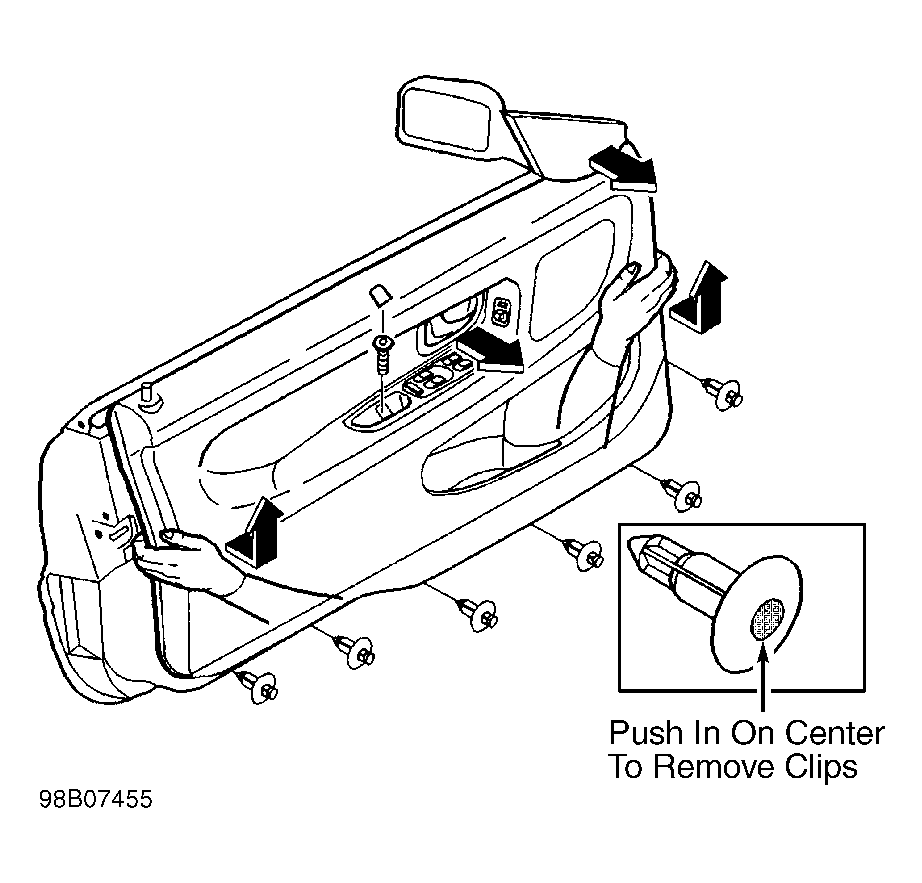

Remove driver's mirror trim panel by pulling outward. Remove inner door handle trim. Remove Torx screw from bottom of inner door pull handle. Push center button of clips along lower edge of door panel and remove clips. Pull lower edge of door outward and slide upward to disengage retainers. Disconnect connectors and remove door panel. See Fig 1. To install, reverse removal procedure.
